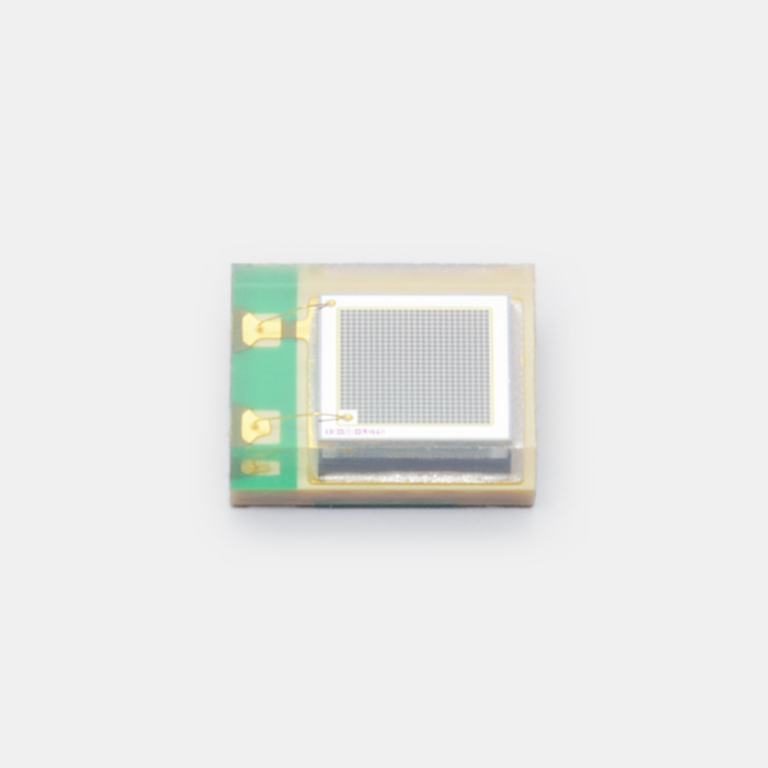

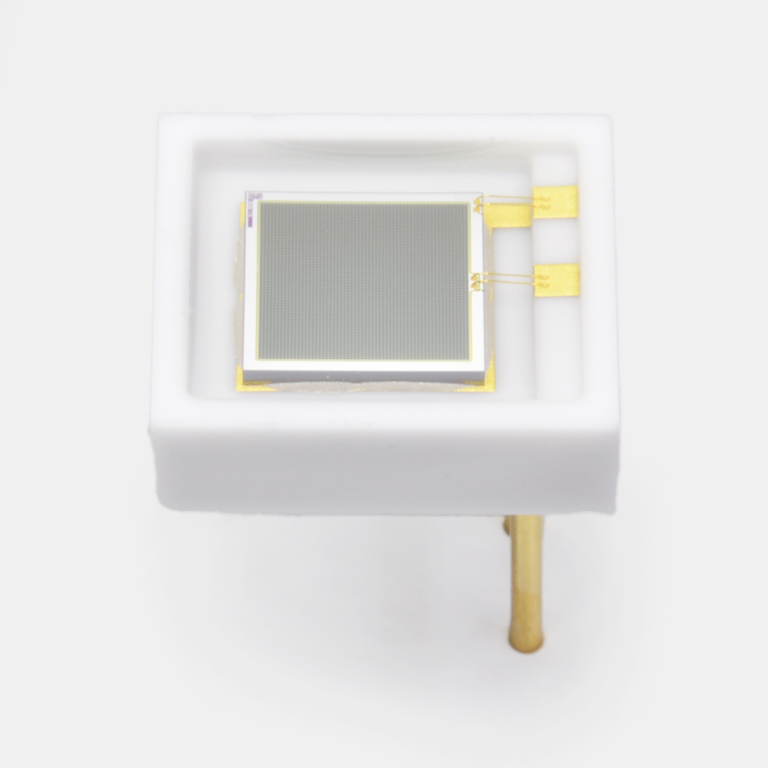

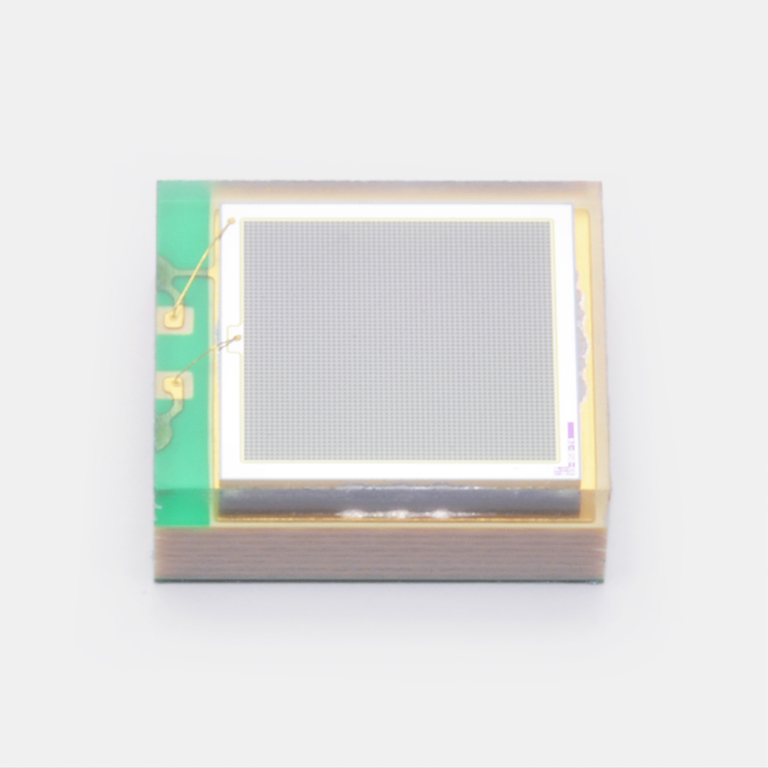

The S13360 series is an MPPC (SiPM) for precision measurement. It inherits the superb low afterpulse characteristics of its predecessor and further provides lower crosstalk and lower dark count. They are suitable for precision measurement, such as flow cytometry, DNA sequencer, laser microscope, and fluorescence measurement, that requires low noise characteristics.
|Number of channels||1 ch|
|Effective photosensitive area / ch||6 × 6 mm|
|Number of pixels /ch||57600|
|Pixel size||25 μm|
|Spectral response range||270 to 900 nm|
|Peak sensitivity wavelength (typ.)||450 nm|
|Dark count/ch (typ.)||1600 kcps|
|Terminal capacitance/ch (typ.)||1280 pF|
|Measurement condition||Ta=25 ℃|
