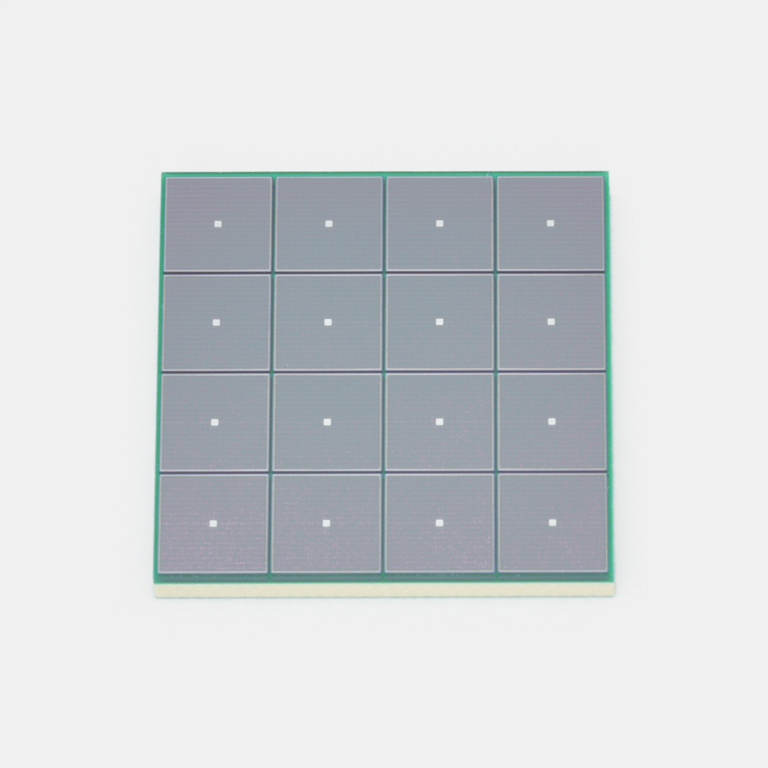

The S13361 series is an MPPC (SiPM) array for precision measurement. It inherits the superb low afterpulse characteristics of its predecessor and further provides lower crosstalk and lower dark count. This MPPC array uses through-silicon via (TSV) to minimize non-sensitive portions around the photosensitive area. The 4-side buttable structure allows arraying multiple elements in two dimensions at narrow intervals.
|Package type||Surface mount type|
|Number of channels||64 (8×8) ch|
|Effective photosensitive area / ch||3 × 3 mm|
|Number of pixels /ch||3584|
|Pixel size||50 μm|
|Spectral response range||320 to 900 nm|
|Peak sensitivity wavelength (typ.)||450 nm|
|Dark count/ch (typ.)||500 kcps|
|Terminal capacitance/ch (typ.)||320 pF|
|Measurement condition||Ta=25 ℃|
