The S11012-01CR is a digital color sensor sensitive to red (λ=615 nm), green (λ=540 nm)、blue(λ=465 nm) regions of the spectrum. Detected signals are serially output as 12-bit digital data. Built-in three 12-bit registers allow simultaneous measurement of RGB three colors. Sensitivity level is adjustable in two steps to cover a wide photometric range.
|Product type||RGB digital color sensor|
|Package type||COB type|
|Package size||3.43 × 3.8 × 1.6 mm|
|Photosensitive area||1.2 × 1.2 mm|

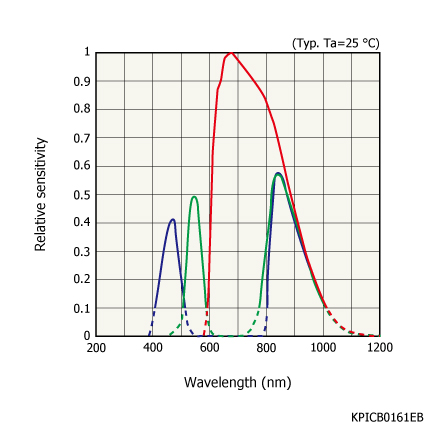

|Spectral response range (Blue)||400 to 540, 800 to 1000 nm|
|Spectral response range (Green)||480 to 600, 760 to 1000 nm|
|Spectral response range (Red)||590 to 1000 nm|
|Photosensitivity Low range (Blue)||0.3 LSB/lx|
|Photosensitivity Low range (Green)||0.6 LSB/lx|
|Photosensitivity Low range (Red)||1.4 LSB/lx|
|Photosensitivity High range (Blue)||2.6 LSB/lx|
|Photosensitivity High range (Green)||5.3 LSB/lx|
|Photosensitivity High range (Red)||12.9 LSB/lx|
|Operating temperature||-20 to +80 deg.C|
|Storage temperature||-20 to +85 deg.C|
|Note||This sensor also has sensitivity in the infraredregion, so cut off infrared light as needed.|
|Measurement condition||Typ. Ta=25 deg.C, Vdd=5 V, Tg=100 ms, A light source, unless otherwise noted|
