Si photodiode array
The S9032-02 is a color sensor molded into a plastic package having a 3-channel (RGB) photodiode sensitive to the blue (λp=460 nm), green (λp=540 nm) and red (λp=620 nm) regions of the spectrum. The S9032-02 has a 3-segment (RGB) circular photosensitive area of φ2 mm.
|Product type||RGB photodiode|
|Package type||Surface mount type|

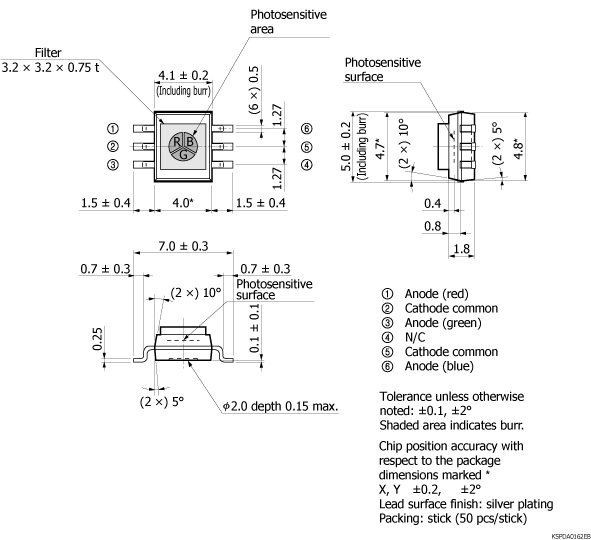

|Package size||4.0 × 4.7 × 2.55 mm|
|Photosensitive area||φ2 mm|

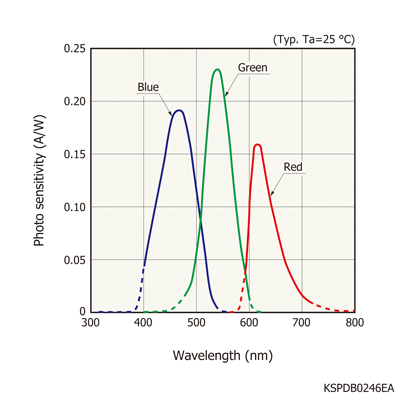

|Spectral response range (Blue)||400 to 540 nm|
|Spectral response range (Green)||480 to 600 nm|
|Spectral response range (Red)||590 to 720 nm|
|Peak sensitivity wavelength (Blue)||460 nm|
|Peak sensitivity wavelength (Green)||540 nm|
|Peak sensitivity wavelength (Red)||620 nm|
|Photosensitivity (Blue)||0.18 A/W|
|Photosensitivity (Green)||0.23 A/W|
|Photosensitivity (Red)||0.16 A/W|
|Dark current (max.)||0.1 nA|
|Terminal capacitance||40 pF|
|Rise time||0.2 μs|
|Operating temperature||-25 to +85 deg.C|
|Storage temperature||-40 to +85 deg.C|
|Measurement condition||Typ. Ta=25 deg.C, per element, Photosensitivity: λ=λp, Dark current (all elements): VR=1 V, unless otherwise noted|
