Si photodiode array
The S9702 is a color sensor molded into a plastic package having a 3-channel (RGB) photodiode sensitive to the blue (λp=460 nm), green (λp=540 nm) and red (λp=620 nm) regions of the spectrum. The S9702 has a 3-segment (RGB) photosensitive area of □1 mm. When compared to the previous model (S9032-02), the S9702 is significantly miniaturized (package size 55% less in cubic volume, PC board mount space 43% less in area).
|Product type||RGB photodiode|
|Package type||Surface mount type|
|Package size||3.0 × 4.0 × 2.0 mm|
|Photosensitive area||1 × 1 mm|

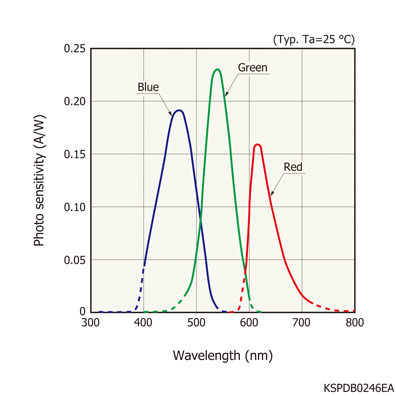

|Spectral response range (Blue)||400 to 540 nm|
|Spectral response range (Green)||480 to 600 nm|
|Spectral response range (Red)||590 to 720 nm|
|Peak sensitivity wavelength (Blue)||460 nm|
|Peak sensitivity wavelength (Green)||540 nm|
|Peak sensitivity wavelength (Red)||620 nm|
|Photosensitivity (Blue)||0.18 A/W|
|Photosensitivity (Green)||0.23 A/W|
|Photosensitivity (Red)||0.16 A/W|
|Dark current (max.)||0.05 nA|
|Terminal capacitance||12 pF|
|Rise time||0.1 μs|
|Operating temperature||-25 to +85 deg.C|
|Storage temperature||-40 to +85 deg.C|
|Measurement condition||Typ. Ta=25 deg.C, per element, Photosensitivity: λ=λp, Dark current (all elements): VR=1 V, unless otherwise noted|
