Photo IC diode


COB (chip on board) type, small package


The S10604-200CT photo IC has spectral response close to human eye sensitivity. Two photosensitive areas are made on a single chip. Almost only the visible range can be measured by finding the difference between the two output signals in the internal current amplifier circuit. Effects of infrared remote control light on sensitivity are reduced when compared to previous types.

-Spectral response close to human eye sensitivity
-Small package: 2.0 × 1.25 × 0.8t mm
about 1/5 the cubic volume of previous type (S9067-201CT)
-Lower output-current fluctuations compared with phototransistors
-Excellent linearity
-Low output fluctuations for light sources producing the
same illuminance at different color temperatures
-Suitable for lead-free reflow (RoHS compliance)


Package material Plastic
Package type COB (Chip On Board) type
Output Analog
Reverse voltage -0.5 to +12 V
Spectral response range 300 to 820 nm
Peak sensitivity wavelength 560 nm
Operating temperature -30 to +80 deg.C
Storage temperature -40 to +85 deg.C
Feature Spectral response close to human eye sensitivity
Measurement condition Ta=25 ℃, Photocurrent: 2856 K, 100 lx

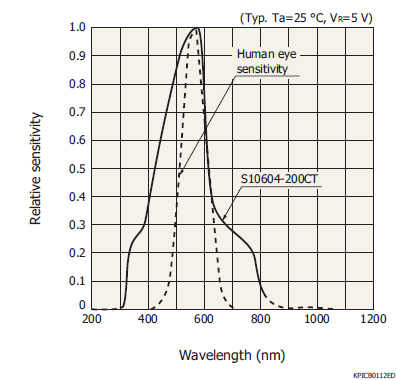

Spectral response

Dimensional outline (unit: mm)
