Photo IC diode


Reduced color temperature erros


The S11154-201CT is a photo IC diode with spectral response characteristics that closely resemble human eye sensitivity. Two active areas are formed on the same chip, and the outputs of the two active areas are subtracted from each other by the current amplifier circuit, in order to have sensitivity alsmost only in the visible range and reduce the color temperature errors.

-Spectral response close to human eye sensitivity
-Redused color temperature error
-Lower output-current variation compared with phototransistors
-Excellent linearity
-Low output deviation by different color temperature light source
-Suitable for lead-free reflow (RoHS compliance)


Package material Plastic
Package type COB (Chip On Board) type
Output Analog
Reverse voltage -0.5 to +12 V
Spectral response range 480 to 640 nm
Peak sensitivity wavelength 580 nm
Operating temperature -30 to +80 deg.C
Storage temperature -40 to +85 deg.C
Feature Color temperature errors reduced type
Measurement condition Ta=25 ℃, Photocurrent: 2856 K, 100 lx

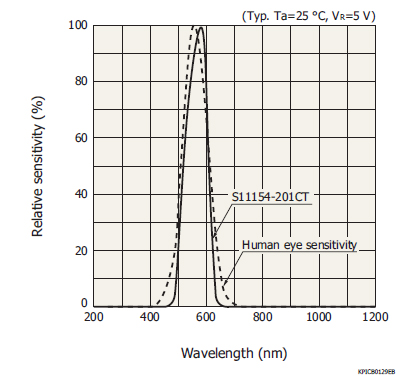

Spectral response

Dimensional outline (unit: mm)
