Photo IC diode

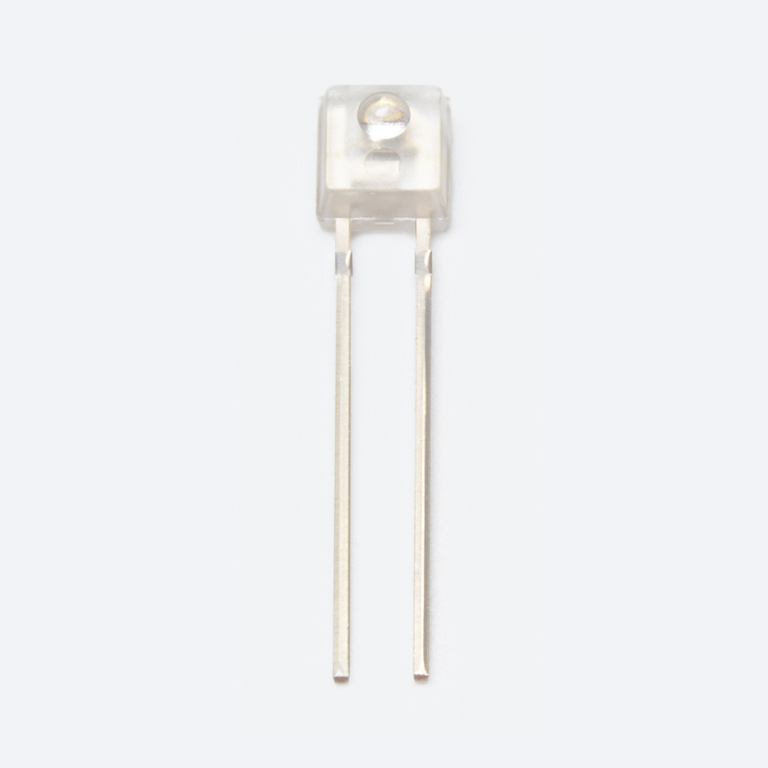

The S7184 consists of a photodiode and a signal processing circuit for amplifying the photocurrent generated from the photodiode up to 1300 times. Despite a small active area, this photo IC provides an output nearly equal to that from photodiode with a 20 × 20 mm active area. The S7184 can be used the same way as a reverse-biased photodiode, and in most cases, it deliver a sufficient output voltage by just connecting a load resistor.
-Clear plastic package
-Operation just as easy as using photodiodes
-Large output current rivaling that of a phototransistor
|Package type||Surface mount type|
|Reverse voltage||-0.5 to +16 V|

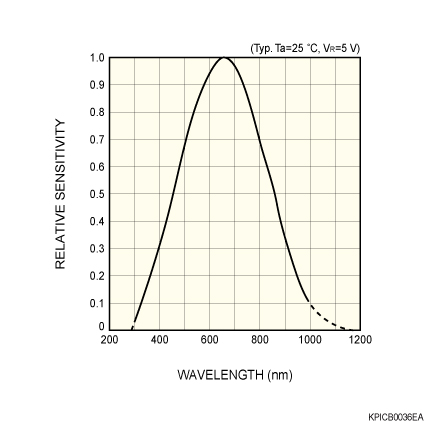

|Spectral response range||300 to 1000 nm|
|Peak sensitivity wavelength||650 nm|
|Operating temperature||-30 to +80 deg.C|
|Storage temperature||-40 to +85 deg.C|
|Feature||Sensitivity in infrared region|
|Measurement condition||Ta=25 ℃, Photocurrent: 2856 K, 1000 lx|
