The S12698 series are Si photodiodes that have achieved high reliability for monitoring ultraviolet light by employing a structure that does not use resin. They exhibit low sensitivity deterioration under UV light irradiation and are suitable for applications such as monitoring intense UV light sources.
- With UV glass window (hermetically sealed)
- High sensitivity in UV region
- High reliability for monitoring UV light irradiation
- Resin material not used
|Photosensitive area||3.6 × 3.6 mm|
|Number of elements||1|
|Reverse voltage (max.)||5 V|
|Spectral response range||190 to 1000 nm|
|Peak sensitivity wavelength (typ.)||800 nm|

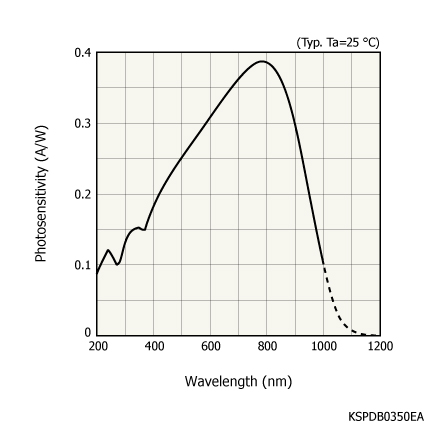

|Photosensitivity (typ.)||0.38 A/W|
|Dark current (max.)||50 pA|
|Rise time (typ.)||0.6 μs|
|Terminal capacitance (typ.)||240 pF|
|Noise equivalent power (typ.)||2.5×10-14 W/Hz1/2|
|Measurement condition||Ta=25 ℃, Typ., Photosensitivity: λ=800 nm, Dark current: VR=10 mV, Terminal capacitance: VR=0 V, f=10 kHz, unless otherwise noted|
