|Photosensitive area||2.4 × 2.4 mm|
|Number of elements||1|
|Reverse voltage (max.)||5 V|

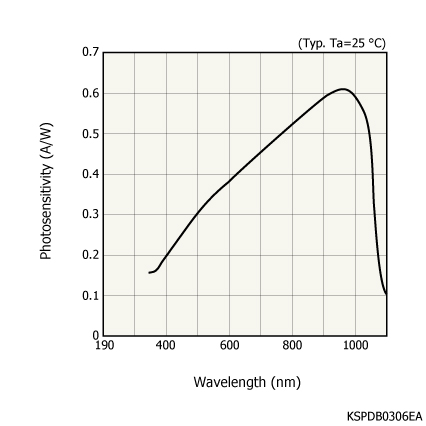

|Spectral response range||340 to 1100 nm|
|Peak sensitivity wavelength (typ.)||960 nm|
|Photosensitivity (typ.)||0.62 A/W|
|Dark current (max.)||30 pA|
|Rise time (typ.)||0.2 μs|
|Terminal capacitance (typ.)||65 pF|
|Noise equivalent power (typ.)||6.5×10-15 W/Hz1/2|
|Measurement condition||Typ. Ta=25 ℃, Photosensitivity: λ=960 nm, Dark current: VR=10 mV, Terminal capacitance: VR=0 V, f=10 kHz, unless otherwise noted|
