Si PIN photodiode
S2506-04 is a Si PIN photodiode with large active areas, molded into a visible-cut plastic SIP for detecting near infrared range only.
|Photosensitive area||2.77 × 2.77 mm|
|Number of elements||1|
|Reverse voltage (max.)||20 V|

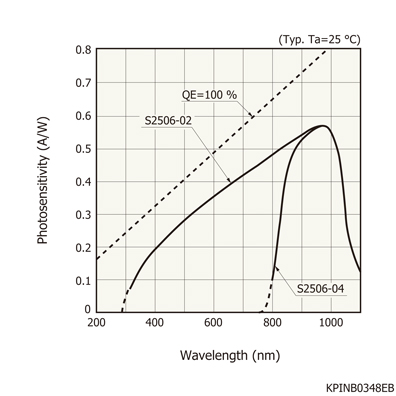

|Spectral response range||760 to 1100 nm|
|Peak sensitivity wavelength (typ.)||960 nm|
|Photosensitivity (typ.)||0.56 A/W|
|Dark current (max.)||10000 pA|
|Cutoff frequency (typ.)||25 MHz|
|Terminal capacitance (typ.)||15 pF|
|Noise equivalent power (typ.)||1×10-14 W/Hz1/2|
|Measurement condition||Ta=25 ℃, Typ., Photosensitivity: λ=780 nm, Dark current: VR=12 V, Cutoff frequency: VR=12 V, Terminal capacitance: VR=12 V, f=1 MHz, Noise equivalent power: VR=12 V, unless otherwise noted|
