Si PIN photodiode
The S3071 is a Si PIN photodiode having a relatively large photosensitive area yet it offers excellent frequency response at 40 MHz. This photodiode is suitable for FSO(free space optics) and high-speed pulsed light detection.
|Photosensitive area||φ5 mm|
|Number of elements||1|
|Reverse voltage (max.)||50 V|

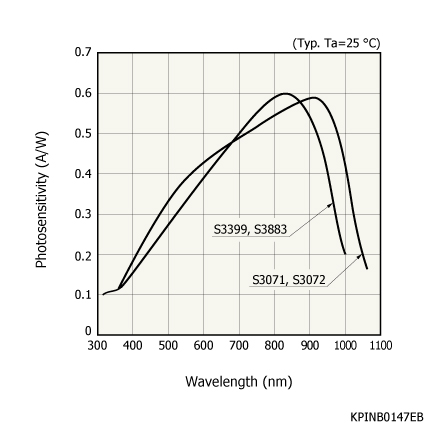

|Spectral response range||320 to 1060 nm|
|Peak sensitivity wavelength (typ.)||920 nm|
|Photosensitivity (typ.)||0.54 A/W|
|Dark current (max.)||10000 pA|
|Cutoff frequency (typ.)||40 MHz|
|Terminal capacitance (typ.)||18 pF|
|Noise equivalent power (typ.)||2.1×10-14 W/Hz1/2|
|Measurement condition||Ta=25 ℃, Typ., Photosensitivity: λ=780 nm, Dark current: VR=24 V, Cutoff frequency: VR=24 V, Terminal capacitance: VR=24 V, f=1 MHz, λ=λp, Noise equivalent power: VR=24 V, λ=λp, unless otherwise noted|
