Si PIN photodiode
S3883
Large area, high-speed Si PIN photodiode
The S3883 is a Si PIN photodiode having a relatively large photosensitive area yet it offers excellent frequency response at 300 MHz. This photodiode is suitable for FSO(free space optics) and high-speed pulsed light detection.
Features
-Photosensitive area size: φ1.5 mm
-Cutoff frequency: 300 MHz (VR=20 V)
-High reliability: TO-5 metal package
| Photosensitive area | φ1.5 mm |
|---|---|
| Number of elements | 1 |
| Package | Metal |
| Package category | TO-5 |
| Cooling | Non-cooled |
| Reverse voltage (max.) | 30 V |
| Spectral response range | 320 to 1000 nm |
| Peak sensitivity wavelength (typ.) | 840 nm |
| Photosensitivity (typ.) | 0.58 A/W |
| Dark current (max.) | 1000 pA |
| Cutoff frequency (typ.) | 300 MHz |
| Terminal capacitance (typ.) | 6 pF |
| Noise equivalent power (typ.) | 6.7×10-15 W/Hz1/2 |
| Measurement condition | Ta=25 ℃, Typ., Photosensitivity: λ=780 nm, Dark current: VR=20 V, Cutoff frequency: VR=20 V, Terminal capacitance: VR=20 V, f=1 MHz, λ=λp, Noise equivalent power: VR=20 V, λ=λp, unless otherwise noted |

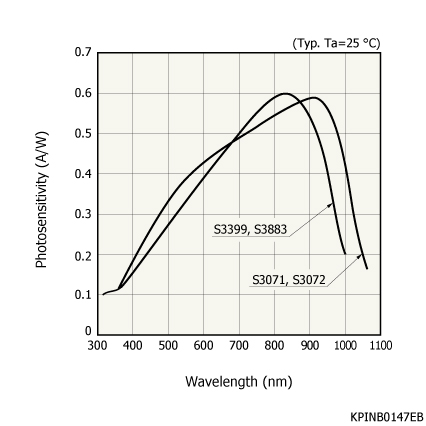

Spectral response

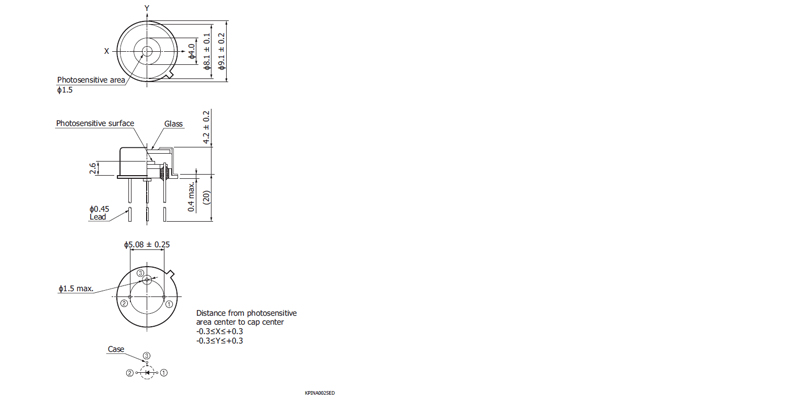

Dimensional outline (unit: mm)
