Si PIN photodiode

S9195

Si PIN photodiode for violet-laser detection

The S9195 is a Si PIN photodiode designed to have enhanced sensitivity in the emission wavelength range of violet-lasers. A high-speed response is achieved despite the large photosensitive area.


Features
- High sensitivity: 0.28 A/W typ. (λ=405 nm)
- High-speed response: 50 MHz typ. (VR=10 V)
- Photosensitive area: 5.0 × 5.0 mm
- TO-8 metal package

Photosensitive area 5.0 × 5.0 mm
Number of elements 1
Package Metal
Package category TO-8
Cooling Non-cooled
Reverse voltage (max.) 20 V
Spectral response range 320 to 1000 nm
Peak sensitivity wavelength (typ.) 840 nm
Photosensitivity (typ.) 0.28 A/W
Dark current (max.) 5000 pA
Cutoff frequency (typ.) 50 MHz
Terminal capacitance (typ.) 60 pF
Noise equivalent power (typ.) 2.5×10-14 W/Hz1/2
Measurement condition Ta=25 ℃, Typ., Photosensitivity: λ=405 nm, Dark current: VR=10 V, Cutoff frequency: VR=10 V, λ=405 nm, Terminal capacitance: VR=10 V, f=1 MHz, Noise equivalent power: VR=10 V, λ=λp, unless otherwise noted

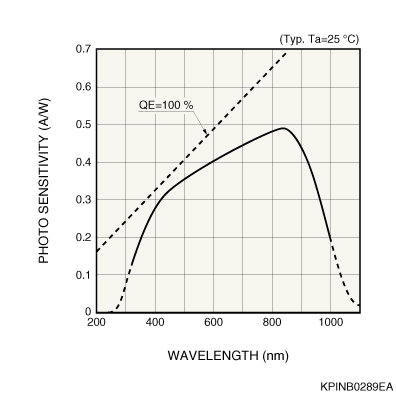

Spectral response

Dimensional outline (unit: mm)
