Si photodiode with preamp
THe S9295 is a thermoelectrically cooled Si photodiode with preamp developed for low-light-level detection. A large area photodiode, op amp, TE-cooler and feedback resistor (10 GΩ) are integrated into a single package. A thermistor is also included in the same package for temperature control so that the photodiode and I-V conversion circuit can be cooled for stable operation. The S9295 also features low noise and low NEP, and is especially suitable for NOx detection. The photosensitive area of the photodiode is internally connected to the GND terminal making it highly resistant to EMC noise.
|Photosensitive area||10 × 10 mm|
|Number of elements||1|

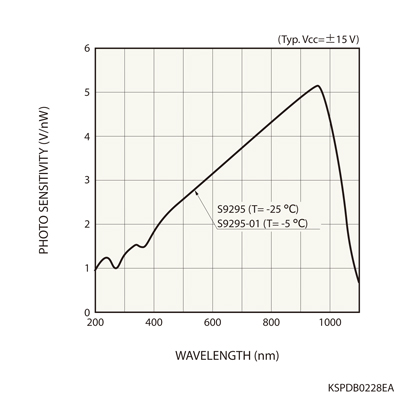

|Spectral response range||190 to 1100 nm|
|Peak sensitivity wavelength (typ.)||960 nm|
|Noise equivalent power (typ.)||4×10-15 W/Hz1/2|
|Measurement condition||Typ. Ta=25 ℃, Noise equivalent power: λ=λp, f=10 Hz, unless otherwise noted|
