Photomultiplier tube assembly

H15547-07

45.0 mm diameter MCP-PMT assembly, Fast time response, High time resolution

Specifications

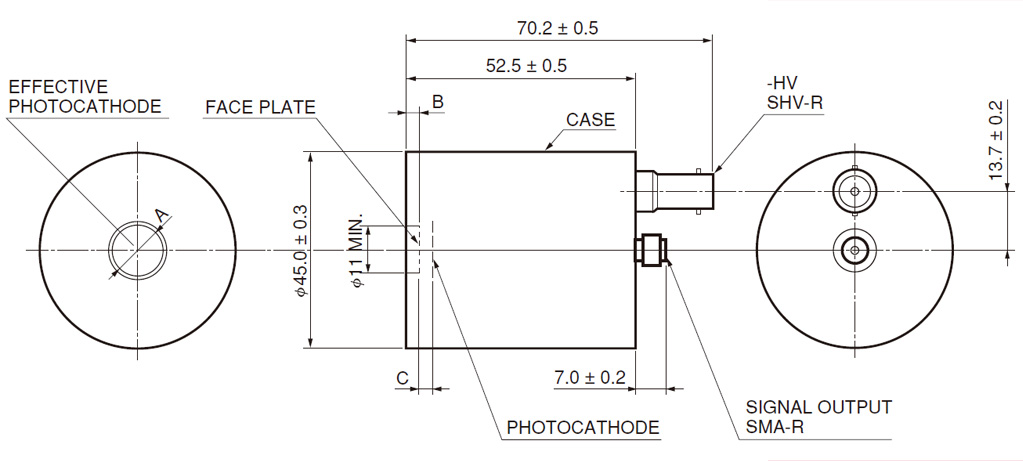

Assembly Size Dia.45 mm
PMT Tube Size - mm
Built-in PMT Type No. R15390U-07
Photocathode Area Shape Round
Photocathode Area Size Dia.11 mm
Wavelength (Short) 160 nm
Wavelength (Long) 850 nm
Wavelength (Peak) 430 nm
Photocathode Material Multialkali
Window Material Quartz
Dynode Structure MCP
Dynode Stages 2
[Max. Rating] Anode to Cathode Voltage -2400 V
[Cathode] Luminous Sensitivity Min. 100 μA/lm
[Cathode] Luminous Sensitivity Typ. 180 μA/lm
[Cathode] Red/White Ratio (R-68) Typ. 0.15
[Anode] Luminous Sensitivity Typ. 100 A/lm
[Anode] Gain Typ. 5.6 x 105
[Anode] Dark Current (after 30min.) Typ. 2 nA
[Anode] Dark Current (after 30min.) Max. 10 nA
[Time Response] Rise Time Typ. 0.19 ns
[Time Response] Transit Time Spread Typ. 0.04 ns
