Photomultiplier tube assembly
H15547-40
H15547-40 is a GaAsP photocathode MCP-PMT assembly. The H15547-40 has an effective area of Φ10 mm and a spectral response range of 280 nm to 720 nm.
Specifications
| Assembly Size | Dia.45 mm |
|---|---|
| Photocathode Area Shape | Round |
| Photocathode Area Size | Dia.10 mm |
| Wavelength (Short) | 280 nm |
| Wavelength (Long) | 720 nm |
| Wavelength (Peak) | 550 nm to 650 nm |
| Photocathode Material | GaAsP |
| Window Material | Borosilicate glass |
| Dynode Structure | MCP |
| Dynode Stages | 2 |
| [Max. Rating] Anode to Cathode Voltage | -2400 V |
| [Cathode] Luminous Sensitivity Min. | 400 μA/lm |
| [Cathode] Luminous Sensitivity Typ. | 700 μA/lm |
| [Anode] Luminous Sensitivity Typ. | 350 A/lm |
| [Anode] Gain Typ. | 5.0 x 105 |
| [Anode] Dark Current (after 30min.) Typ. | 3 nA |
| [Anode] Dark Current (after 30min.) Max. | 15 nA |
| [Time Response] Rise Time Typ. | 0.2 ns |
| [Time Response] Transit Time Spread Typ. | 0.13 ns |

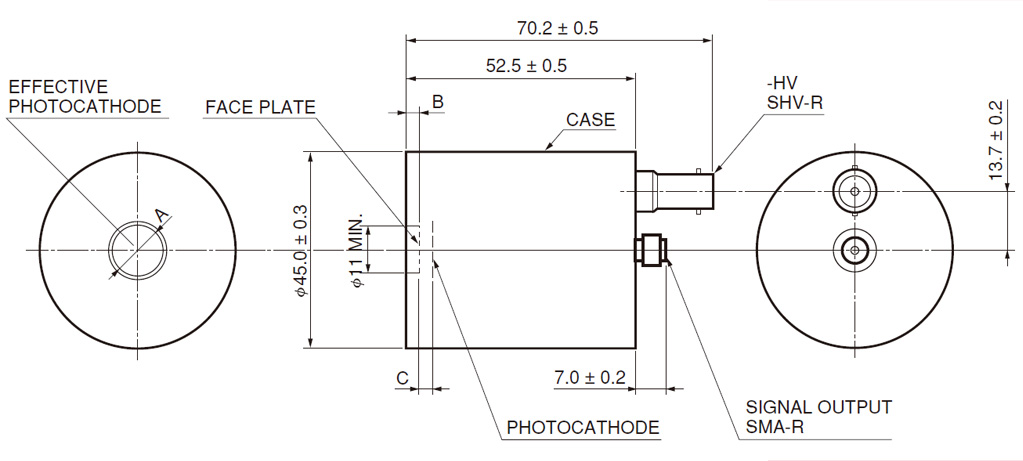

Dimensional outline (Unit: mm)
| Suffix | A | B | C |
|---|---|---|---|
| -07 | Φ11 Min. | 3.0±0.2 | 3.2±0.1 |
| -40 | Φ10 Min. |
2.8±0.2 | 4.2±0.1 |
