Photomultiplier tube module
|Photocathode Area Shape||Round|
|Photocathode Area Size||Dia.5 mm|
|Wavelength (Short)||300 nm|
|Wavelength (Long)||740 nm|
|Wavelength (Peak)||520 nm|

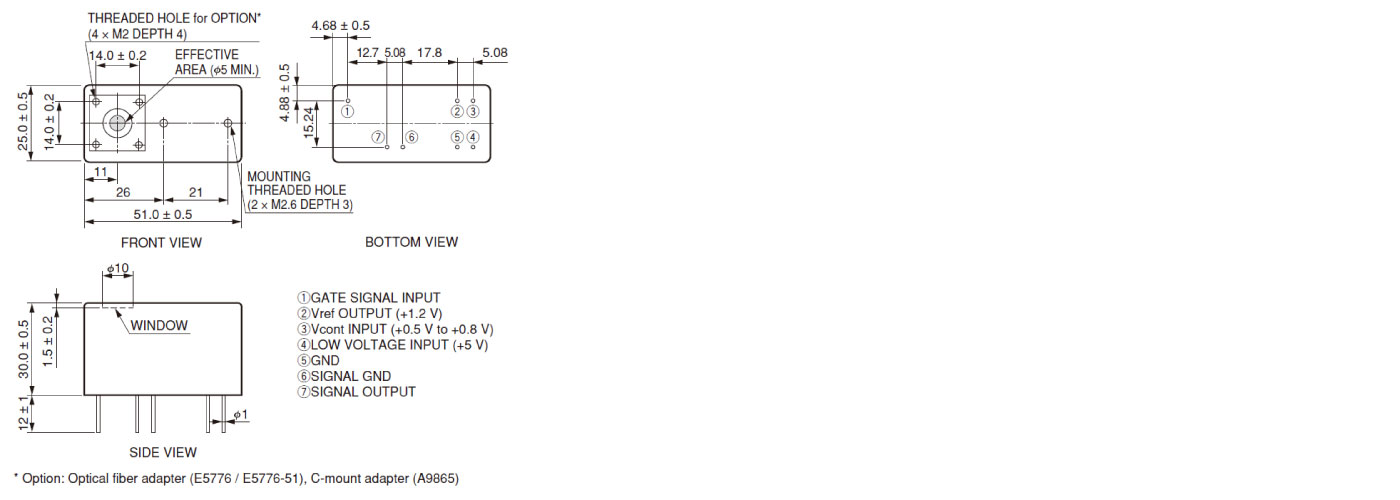

|Dimension (W x H x D)||51.0 x 30.0 x 25.0 mm|
|Input Voltage||+4.5 to +5.5 V|
|Max. Input Voltage||6 V|
|Max. Input Current||10 mA|
|Max. Output Signal Current||40 μA|
|Max. Control Voltage||+0.9 (Input impedance 1 MΩ) V|
|Recommended Control Voltage Adjustment Range||+0.5 to +0.8 (Input impedance 1 MΩ) V|
|[Cathode] Radiant Sensitivity Typ.||189 mA/W|
|[Anode] Radiant Sensitivity Typ.||3.8 x 105 A/W|
|[Anode] Dark Current (after 30min.) Typ.||3 nA|
|[Anode] Dark Current (after 30min.) Max.||10 nA|
|[Anode] P Type Dark Count Typ.||6000 s-1|
|[Anode] P Type Dark Count Max.||18 000 s-1|
|[Time Response] Rise Time Typ.||1 ns|
|Ripple Noise (peak to peak) Max.||0.6 mV|
|Settling Time Max.||10 s|
|Operating Ambient Temperature||+5 to +35 ℃|
|Storage Temperature||-20 to +50 ℃|
|Parameter||Description / Value||Unit|
|Gate mode||Mode||Normally ON||—|
|Gate width (FWHM)||1 ms to DC||—|
|Repetition rate||Max.||300 Hz (Gate width 1 ms)||—|
|Delay time||Typ.||0.1 (At rise), 0.6 (At fall)||ms|
|Gate signal input||Level||TTL level
(High level: +2 V to +5 V)
