Power supply

C10709

Power supply unit for driving photomultiplier tube modules. Both drive voltages and control voltages can be supplied from this one unit.

Specifications

Parameter Description / Value Unit
Output voltage +5 -5 V
Max. output current 2.0 0.2 A
Max. Vref input (VREF) +1.8 V
Vcont output (CONTROL) *¹ +0.25 to +1.8 V
Terminal connection method Binding post -
AC input voltage *² 100 to 240 V
AC input frequency 50 / 60 Hz
Max. AC input current consumption 0.5 A
Operating ambient temperature *³  +5 to +50
Operating ambient humidity *³ Below 80 %RH
Storage temperature *³ -20 to +50
Storage humidity *³ Below 80 %RH
Weight Approx. 1.2 kg

Notes

*1: Adjust within the recommended Vcont range for the photomultiplier tube module being used.

*2: According to the applicable safety standard of the supplied power code.

*3: No condensation.

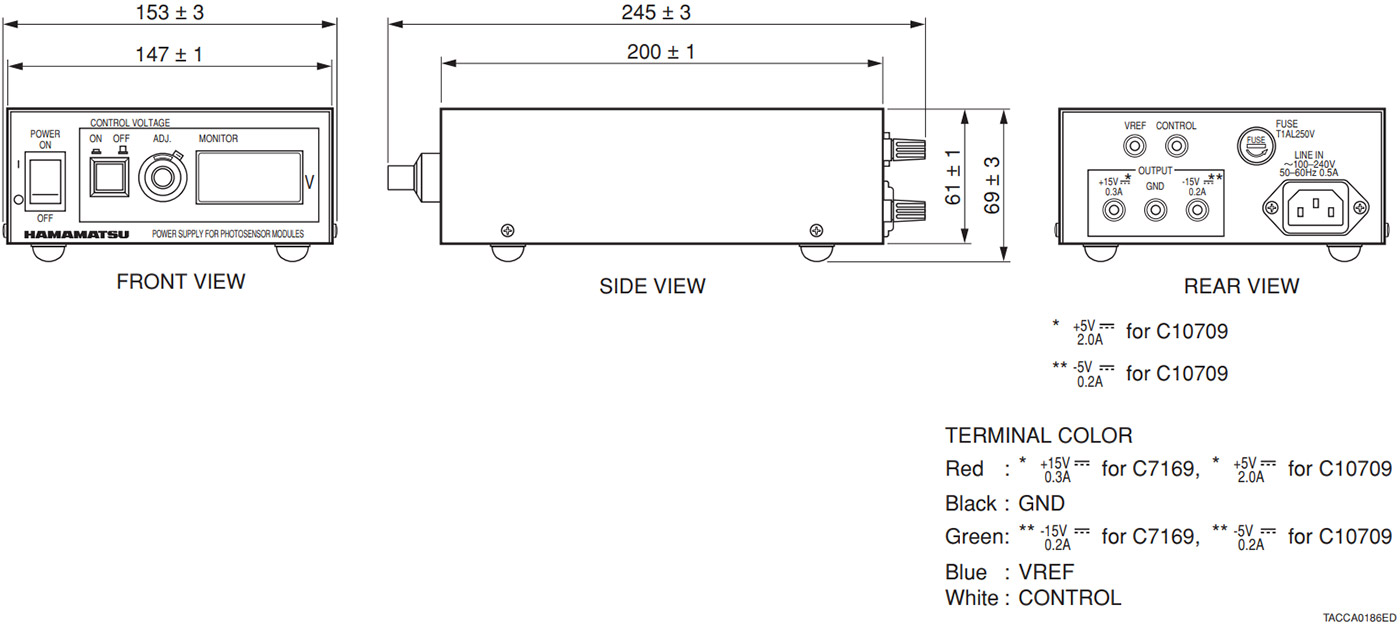

Dimensional outline (Unit: mm)
