Photomultiplier tube

R14689

90mm dia., Head-on type, Bialkali photocathode (Effective area : 81 mm dia./Spectral response : 300 nm to 650 nm), For high energy physics

Type Head-on type
Tube Size Dia.90 mm
Photocathode Area Shape Round
Photocathode Area Size Dia.81 mm
Wavelength (Short) 300 nm
Wavelength (Long) 650 nm
Wavelength (Peak) 420 nm
Photocathode Material Bialkali
Window Material Borosilicate glass
Dynode Structure Circular and linear-focused
Dynode Stages 10
[Max. Rating] Anode to Cathode Voltage 1500 V
[Max. Rating] Average Anode Current 0.1 mA
Anode to Cathode Supply Voltage 1250 V
[Cathode] Luminous Sensitivity Min. 60 μA/lm
[Cathode] Luminous Sensitivity Typ. 90 μA/lm
[Cathode] Blue Sensitivity Index (CS 5-58) Typ. 11
[Cathode] Radiant Sensitivity Typ. 90 mA/W
[Anode] Luminous Sensitivity Typ. 900 A/lm
[Anode] Radiant Sensitivity Typ. 9.0 x 105 A/W
[Anode] Gain Typ. 1.0 x 107
[Anode] Dark Current (after 30min.) Typ. 50 nA
[Anode] Dark Current (after 30min.) Max. 500 nA
[Time Response] Rise Time Typ. 2.9 ns
[Time Response] Transit Time Typ. 36 ns
[Time Response] Transit Time Spread Typ. 1.5 ns
[Anode] Pulse Linearity (2% deviation) 20 mA
[Anode] Pulse Linearity (5% deviation) 30 mA

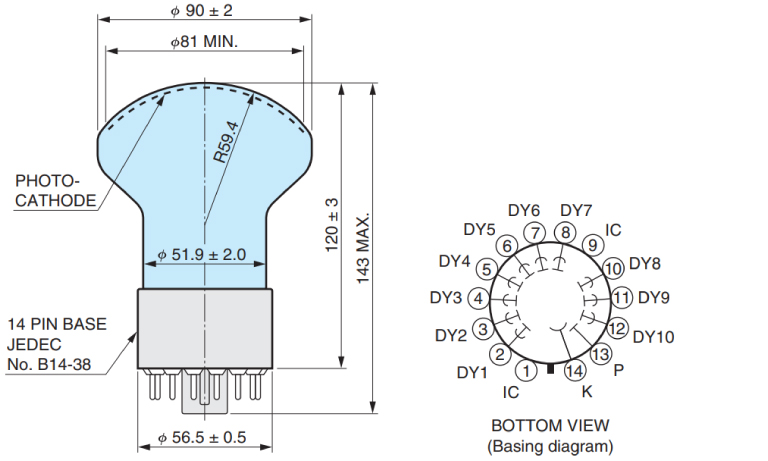

Dimensional outline (Unit: mm)
