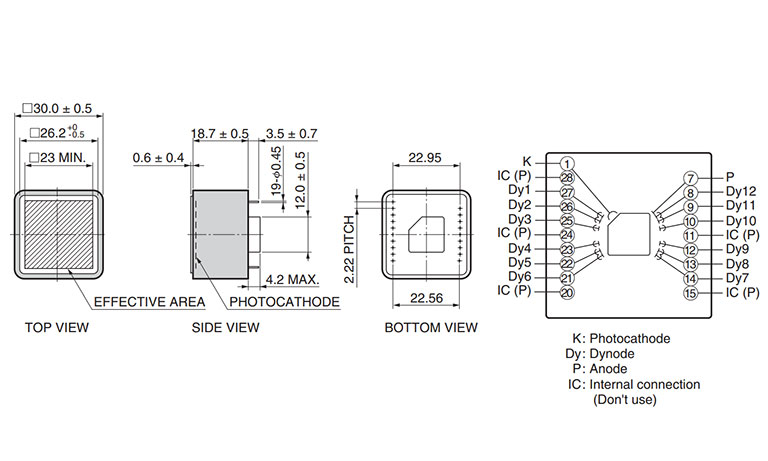

30 x 30 mm metal package type, Super bialkali photocathode (Effective area : 23 x 23 mm dia./Spectral response : 300 to 650 nm)
|Type||Metal package type|
|Tube Size||30 x 30 mm|
|Photocathode Area Shape||Square|
|Photocathode Area Size||23 x 23 mm|
|Wavelength (Short)||300 nm|
|Wavelength (Long)||650 nm|
|Wavelength (Peak)||400 nm|
|Spectral Response Curve Code||440K|
|Photocathode Material||Super bialkali (SBA)|
|Window Material||Borosilicate glass|
|Dynode Structure||Metal channel|
|[Max. Rating] Anode to Cathode Voltage||1000 V|
|[Max. Rating] Average Anode Current||0.1 mA|
|Anode to Cathode Supply Voltage||900 V|
|[Cathode] Luminous Sensitivity Min.||90 μA/lm|
|[Cathode] Luminous Sensitivity Typ.||105 μA/lm|
|[Cathode] Blue Sensitivity Index (CS 5-58) Typ.||13.5|
|[Cathode] Radiant Sensitivity Typ.||110 mA/W|
|[Anode] Luminous Sensitivity Min.||50 A/lm|
|[Anode] Luminous Sensitivity Typ.||130 A/lm|
|[Anode] Radiant Sensitivity Typ.||1.3 x 105 A/W|
|[Anode] Gain Typ.||1.2 x 106|
|[Anode] Dark Current (after 30min.) Typ.||2 nA|
|[Anode] Dark Current (after 30min.) Max.||20 nA|
|[Time Response] Rise Time Typ.||1.3 ns|
|[Time Response] Transit Time Typ.||5.8 ns|
|[Time Response] Transit Time Spread Typ.||0.27 ns|
|[Anode] Pulse Linearity (2% deviation)||20 mA|
|[Anode] Pulse Linearity (5% deviation)||60 mA|
