Quantaurus-QY® Plus UV-NIR absolute PL quantum yield spectrometer

C13534 series

C13534 series is designed to measure the instantaneous absolute value of emission quantum yield using the photoluminescence method.

Two types are available, C13534-11 (300 nm to 950 nm) and C13534-12 (400 nm to 1100 nm), according to the wavelength region to be measured.

Additionally, easily extended functions using newly designed options allows measurements to be made in the near-infrared up to 1650 nm, at high sensitivity (evaluation of low quantum yield), and of upconverted emissions.



Quantaurus-QY is a registered trademark of Hamamatsu Photonics K.K. (China, EU, Japan, Korea, Taiwan, UK, USA).

Specifications

Type number C13534-11 C13534-12
  PL measurement wavelength range 300 nm to 950 nm 400nm to 1100 nm
Monochromatic light source
  Light source 150 W xenon light source
  Excitation wavelength 250 nm to 850 nm 375 nm to 850 nm
  Bandwidth 10 nm or less (FWHM)
  Excitation wavelength control Automatic control
Multichannel spectroscope
  Photo-detector BT-CCD linear sensor
  Measurement wavelength range 200 nm to 950 nm 350 nm to 1100 nm
  Wavelength resolution < 2 nm < 2.5 nm
  Number of photosensitive device channels 1024ch
  Device cooling temperature - 15 ℃
  AD resolution 16 bit
  Spectroscope optical arrangement Czerny-Turnre type
Integrating sphere
  Material Spectralon
  Size 3.3 inch

Dimensions

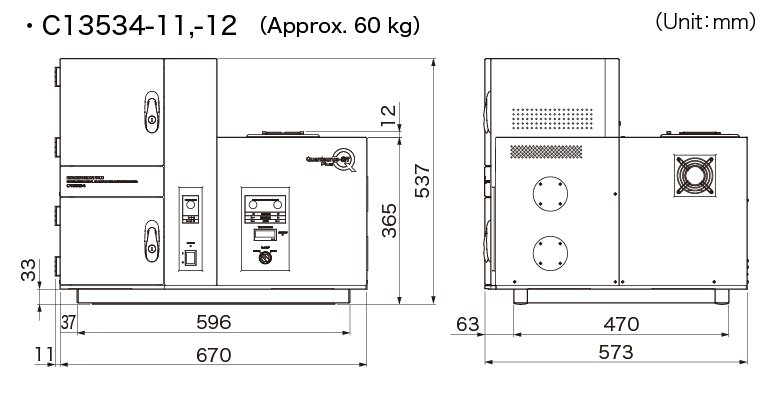

c13534-11,-12 dimensional outline
