OPAL‐Luxe High dynamic range spectrometer
C16736-01
The OPAL-Luxe is a compact, multi-channel spectrometer with the unprecedented ultra-high dynamic range. It is capable of simultaneous multi-wavelength spectral measurements over a wide wavelength range with extremely high dynamic range, and is particularly effective when strong and weak signals are present simultaneously. In order to take full advantage of its high dynamic range, the spectral optics have been newly designed and developed as a top-of-the-line model of, with high sensitivity, high wavelength resolution, while minimizing stray light.
(This product name might be changed in China and Korea.)
News about OPAL-Luxe
Specifications
| Wavelength | 200 nm to 900 nm |
|---|---|
| Wavelength resolution (FWHM) | ≤ 0.9 nm (typ.0.85 nm) |
Wavelength accuracy |
±0.1 nm |
| Exposure time | 100 μs to 32.7 s |
| Repetition frequency | 100 Hz |
| Number of photosensitive device channels | 2048 ch |
| Pixel size | 12 μm × 1536 μm |
| Device cooling temperature | −5 °C |
| Readout noise (typ.) | 12 electrons rms |
| Dark current (typ.) | 1.5 electrons/pixel/sec (−5 °C) |
| Dynamic range (typ.) | 2 500 000：1 |
| AD resolution | 16 bit |
| Spectrograph F number | 2.2 |
| External trigger input | TTL level/High impedance (D-sub 15-pin connector) |
| Interface | Ethernet (CAT.6) within 30 m |
| Power supply | DC24 V |
| Power consumption | Approx. 40 VA |
| Ambient operating temperature | +10 °C to +35 °C |
| Ambient operating humidity | 30 % to 80 % (With no condensation) |

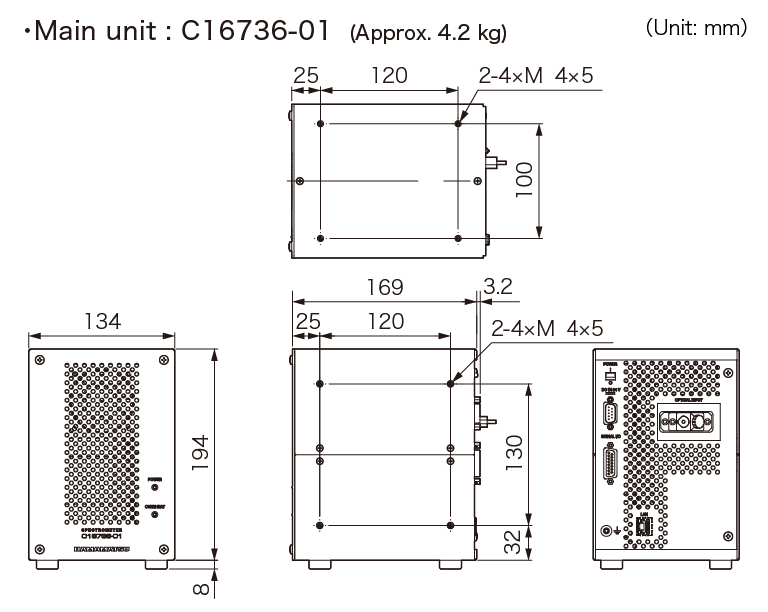

Dimensions
