High dynamic range streak camera
C13410 series
Dynamic range of 10 000 : 1 of ultra fast phenomena under single-shot operation!
The C13410 is a high dynamic range streak camera that can handle a large number of photo-electrons. This feature enables single-shot measurements of ultra fast phenomena with a dynamic range as high as 10 000 : 1.
This system is suitable for high-precision simultaneous measurement of high-intensity and weak intensity pulse light.
Features
- High dynamic range of 10 000 : 1 (at temporal resolution 100 ps)
- Temporal resolution of 5 ps*
- Effective photo cathode size: 17 mm
- Simultaneous measurement of light intensity on temporal and spatial (wavelength) axis
* The dynamic range of the streak camera is 1000:1 at the fastest time range with temporal resolution of 5ps. Image intensifier is required to detect singel photo-electron.
Applications
- Research involving laser fusion lasers, free electron lasers and various other types of pulsed lasers
- Plasma light emission, radiation, laser ablation, combustion and explosion
- Picosecond transient absorption measurement (Time dependence of absorption is shown on the right.)
- LIDAR Thomson scattering, time-of-flight laser ranging
- Fluorescence lifetime measurement, time-resolved raman spectroscopy
Specifications
| Type number | C13410-01A | C13410-01B | C13410-02A | C13410-02B | |
|---|---|---|---|---|---|
| Photocathode | S-20 | S-1 | |||
| Spectral response | 200 nm ～ 850 nm | 300 nm ～ 1060 nm | |||
| Effective photocathode size | 7.0 mm × 17.48 mm | ||||
| Phosphor screen | P-43 Φ25 mm Fiberopic output | ||||
| Spatial resolution | 18 lp/mm or more (center of photocathode, wavelength 530 nm) | ||||
| Image enhancement part | Image Intensifier (I.I.) / Image Booster(I.B.) Outside attachment | ||||
| Focus | Magnetic focus | ||||
| Temporal resolution | Better than 5 ps (at the fastest sweep range) | ||||
| Sweep time / full screen 1, 2, 5 step | 0.5 ns ～ 1 ms | 0.5 ns ～ 10 ms | 0.5 ns ～ 1 ms | 0.5 ns ～ 10 ms | |
| Trigger jitter | Less than ±20 ps (at the fastest sweep range) | ||||
| Trigger delay | Approx. 30 ns (at the fastest sweep range) | ||||
| Maximum sweep repetition frequency | 1 kHz at OPEN FIXED mode, 100 Hz at NORMAL mode (at the fastest sweep range) | ||||
| Operation mode | FOCUS / OPERATE | ||||
| Streak trigger input | Maximum input voltage | ±5 V, 50Ω | |||
| Trigger level | ±4 V Adjustable | ||||
| Monitor out signal | LVCMOS 10 kΩ | ||||
| Gate mode | NORMAL / GATE / OPEN FIXED | ||||
| Gate method | Photocathode gate | ||||
| Maximum gate repetition frequency | 100 Hz | ||||
| Extinction ratio | More than 1：105 | ||||
| Input signal | +3.5 V ～ +5.0 V、50 Ω, rising edge | ||||
| Gate delay time | 1 μs | ||||
| Interface | USB 2.0 | ||||
| Power supply | AC 100 V ～ AC 240 V、50 Hz/60Hz | ||||
| Power consumption | Approx. 100 VA | ||||

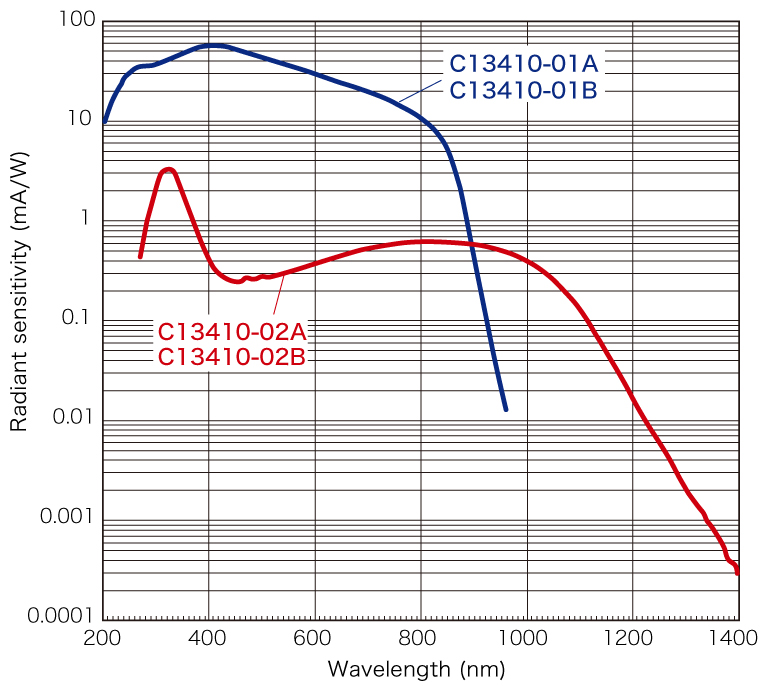

Spectral response

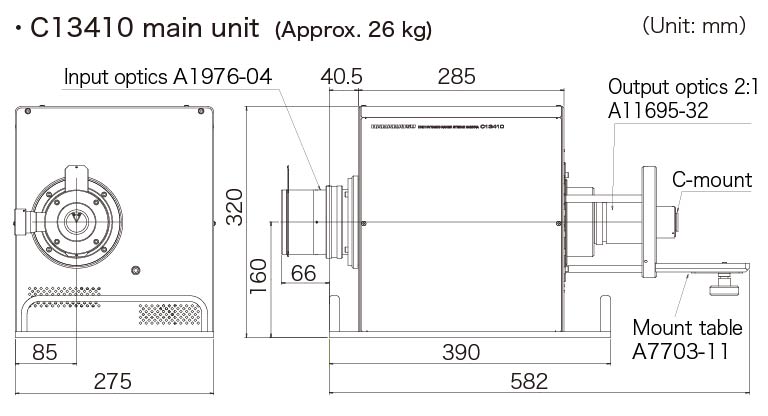

Dimensions
