LCOS-SLM (optical phase modulator) X15223 series

The LCOS-SLM are compact and low-cost modulators designed to be installed in devices to allow easy application softwarein the industrial field and the like.

There are 12 types in X15223 series, which cover different wavelengths of light sources.All types have a glass substrate with an anti-reflection coating and a CMOS chip with a mirror.

They can be classified into aluminum mirror type and dielectric mirror type.

●Aluminum mirror type (-01/-07/-08)

The aluminum mirror type uses the reflection from the aluminum electrode on the CMOS chip and has a wide reflection band, so it can be used in a wide wavelength range.

●Dielectric multilayer mirror type (-02/-03/-05/-12/-13/-15/-16/-19)

The dielectric multilayer mirror type has a specially designed dielectric multilayer film on the surface of the CMOS chip to support laser light sources of various wavelengths. Compared to the aluminum mirror type, the higher reflectivity achieved by the dielectric mirror decreases the internal absorption rate. This makes it possible to irradiate high power lasers.

●Water-cooled type (02L/-02R/-03L/-03R/-03BL/-03BR/-12L/-12R/-15L/-15R/-16L/-16R/-19L/-19R)

The dielectric multilayer mirror type head has a built-in water-cooled heat sink to suppress temperature rise due to laser irradiation and improve light resistance.

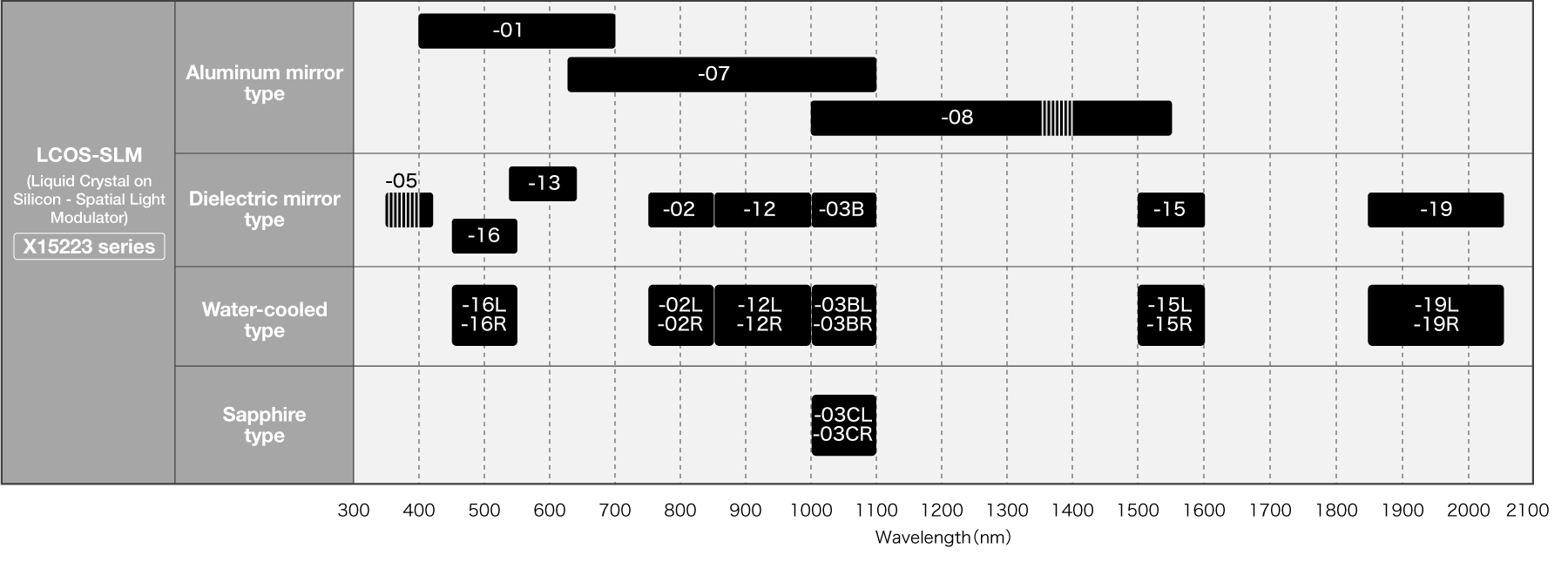

Wavelength range
