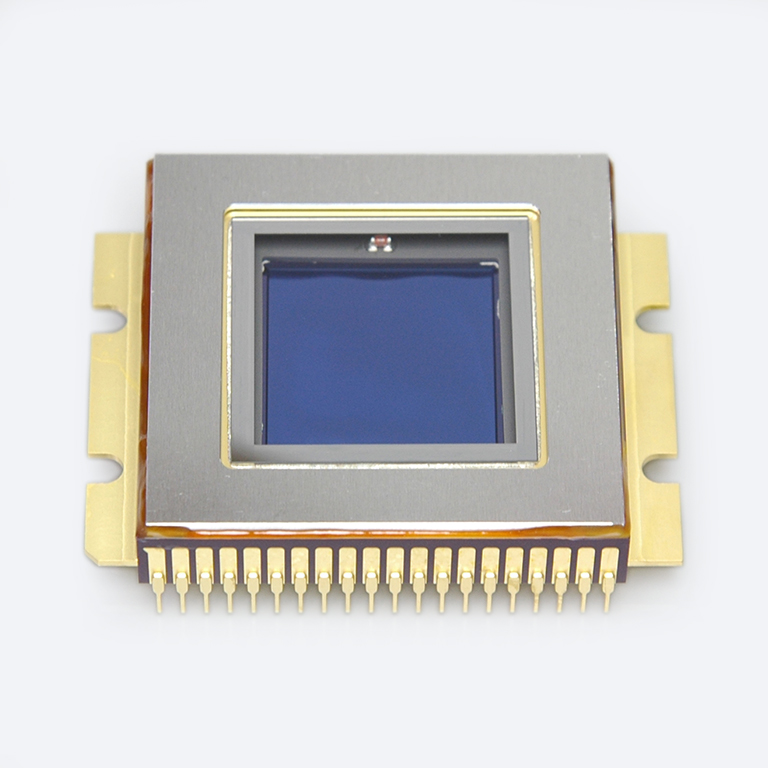

CCD area image sensor

S12071

High sensitivity in UV region, anti-blooming function included

The S12071 CCD area image sensor has a back-thinned structure that enables a high sensitivity in the UV to visible region as well as a wide dynamic range, low dark current, and an anti-blooming function.


Features
-High sensitivity in UV region
-One-stage TE-cooled type
-Low dark current
-Anti-blooming function included
-Selectable readout port to match your application
   tap A: low noise amplifier (1 MHz max.)
   tap B: high-speed amplifier (10 MHz max.)
-Number of effective pixels: 1024 × 1024

Type For ICP spectrophotometry
Image size 24.576 x 24.576 mm
Number of effective pixels 1024 x 1024 pixels
Pixel size 24 x 24 μm
Spectral response range 165 to 1100 nm
Frame rate tap A: 0.1
tap B: 1.5 frames/s
Dark current (typ.) 100 e-/pixel/s
Cooling One-stage TE-cooled
Window material Quartz
Package Ceramic
Measurement condition Typ. Ta=25 ℃, unless otherwise noted, operating condition: Typ.

Spectral response

Dimensional outline (unit: mm)
