CMOS linear image sensor
The S11637 series are CMOS linear image sensors with electronic shutter function and gain switching function. The S11637 series has a pixel pitch that is one-half that of our previous type (S10453 series).
|Type||High-speed readout type|
|Image size||12.8 x 0.5 mm|
|Number of effective pixels||1024 x 1 pixels|
|Pixel size||12.5 x 500 μm|

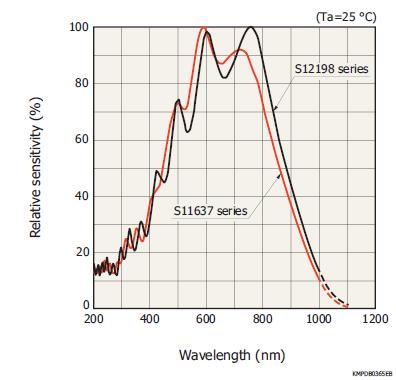

|Spectral response range||200 to 1000 nm|
|Line rate (max.)||9487 lines/s|
