CCD area image sensor


Improved etaloning characteristics, Low noise type available

The S10420-1004-01 is a back-thinned CCD image sensor designed for spectrometers. Low noise type is available with improved etaloning characteristics. The S10420-1004-01 offers nearly flat spectral response characteristics with high quantμm efficiency from the UV to near infrared region.

-Improved etaloning characteristics
-High sensitivity over a wide spectral range and nearly flat spectral response characteristics
-High CCD node sensitivity: 6.5 uV/e-
-High full well capacity and wide dynamic range
-Pixel size: 14 × 14 μm

Type Binning type
Low etaloning type
Image size 14.336 x 0.224 mm
Number of effective pixels 1024 x 16 pixels
Pixel size 14 x 14 μm
Spectral response range 200 to 1100 nm
Line rate (typ.) 221 lines/s
Line rate (max.) 424 lines/s
Dark current (typ.) 50 e-/pixel/s
Readout noise (typ.) 6 e- rms
Cooling Non-cooled
Package Ceramic
Dedicated driver circuit C11287-01
Measurement condition Typ. Ta=25 ℃, unless otherwise noted, Frame rate: full line binning

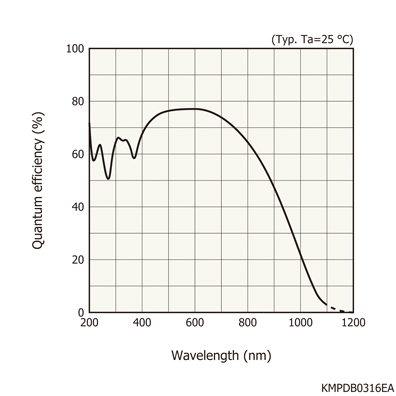

Spectral response
