CCD area image sensor

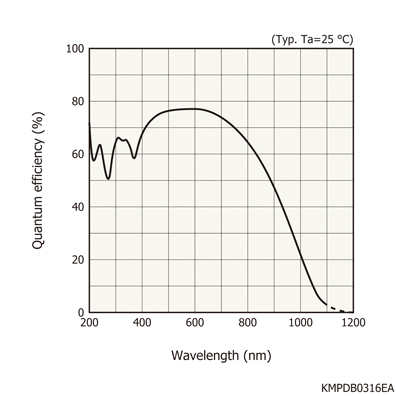

The S11071-1106 is a back-thinned CCD image sensor designed for spectrometers. High-speed type is available with improved etaloning characteristics. The S11071-1106 offer nearly flat spectral response characteristics with high quantμm efficiency from the UV to near infrared region.
Low etaloning type

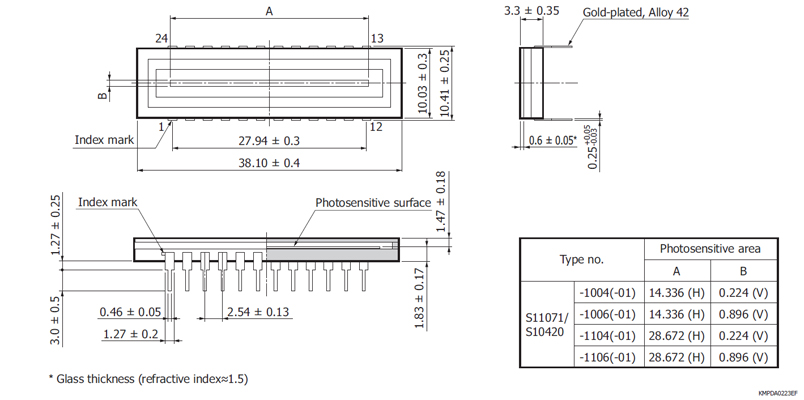

|Image size||28.672 x 0.896 mm|
|Number of effective pixels||2048 x 64 pixels|
|Pixel size||14 x 14 μm|
|Spectral response range||200 to 1100 nm|
|Line rate (typ.)||651 lines/s|
|Line rate (max.)||2875 lines/s|
|Dark current (typ.)||50 e-/pixel/s|
|Readout noise (typ.)||23 e- rms|
|Dedicated driver circuit||C11288-01|
|Measurement condition||Typ. Ta=25 ℃, unless otherwise noted, Frame rate: full line binning|
