InGaAs PIN photodiode array


16-element array

-16-element array
-For simple measurement

Number of elements 16
Package Ceramic
Cooling Non-cooled
Spectral response range 0.9 to 1.7 μm
Peak sensitivity wavelength (typ.) 1.55 μm
Photosensitivity (typ.) 0.95 A/W
Dark current (max.) 1 nA
Cutoff frequency (typ.) 300 MHz
Terminal capacitance (typ.) 10 pF
Measurement condition Typ. Ta=25 ℃, unless otherwise noted

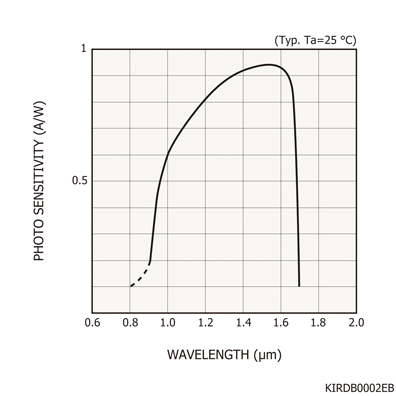

Spectral response

Dimensional outline (unit: mm)
