Si photodiode array


RGB color sensor

The S9032-02 is a color sensor molded into a plastic package having a 3-channel (RGB) photodiode sensitive to the blue (λp=460 nm), green (λp=540 nm) and red (λp=620 nm) regions of the spectrum. The S9032-02 has a 3-segment (RGB) circular photosensitive area of φ2 mm.

-3-channel (RGB) Si photodiode
-Surface-mount small plastic package
-Spectral response range close to the human eye sensitivity
-No sensitivity in the near IR region
-Photosensitive area: 3-segment (RGB) circular photosensitive area of φ2 mm

Product type RGB photodiode
Package material Plastic
Package type Surface mount type
Package size 4.0 × 4.7 × 2.55 mm
Photosensitive area φ2 mm
Spectral response range (Blue) 400 to 540 nm
Spectral response range (Green) 480 to 600 nm
Spectral response range (Red) 590 to 720 nm
Peak sensitivity wavelength (Blue) 460 nm
Peak sensitivity wavelength (Green) 540 nm
Peak sensitivity wavelength (Red) 620 nm
Photosensitivity (Blue) 0.18 A/W
Photosensitivity (Green) 0.23 A/W
Photosensitivity (Red) 0.16 A/W
Dark current (max.) 0.1 nA
Terminal capacitance 40 pF
Rise time 0.2 μs
Operating temperature -25 to +85 deg.C
Storage temperature -40 to +85 deg.C
Measurement condition Typ. Ta=25 deg.C, per element, Photosensitivity: λ=λp, Dark current (all elements): VR=1 V, unless otherwise noted

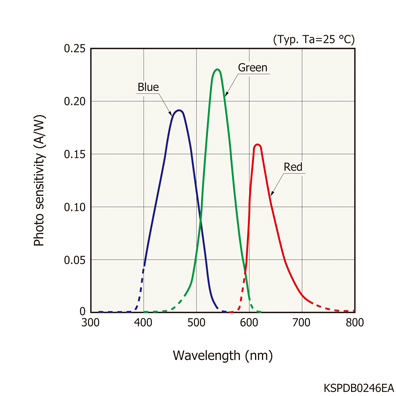

Spectral response

Dimensional outline (unit: mm)
