Light modulation photo IC


Asynchronous type light modulation photo IC

The S4289-61 is an asynchronous type light modulation photo IC designed for reliable detection even under disturbance background light. A photodiode, preamplifier, comparator, oscillator and signal processing circuit, etc. are all integrated on a monolithic photo IC chip. Using asynchronous optical detection means that no wiring to a signal light source (such as LED) is required and allows greater versatility in equipment

-Asynchronous detection
-Large allowable background illuminance: 4000 lx Typ.
-Minimum detection level: 0.2 uW/mm2 Typ.
-Digital output (Output appears “L” by light input.).
-Small plastic package

Package Plastic
Package type visible-cut
Allowable background light level 4000 lx
Type Asynchronous detection
Measurement condition Typ. Ta=25 ℃, unless otherwise noted

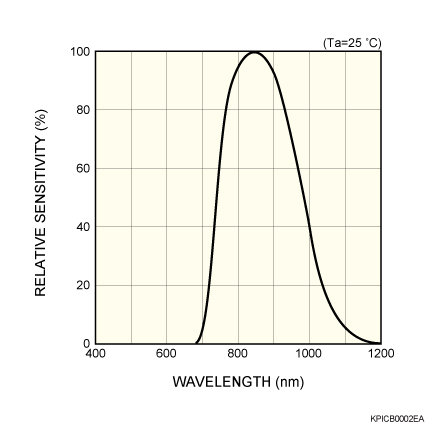

Spectral response

Dimensional outline (unit: mm)
