Si PIN photodiode array
|Number of elements||4-segment|
|Package category||Surface mount type|

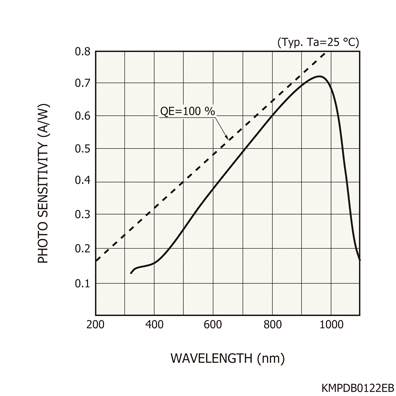

|Spectral response range||320 to 1100 nm|
|Peak sensitivity wavelength (typ.)||960 nm|
|Photosensitivity (typ.)||0.72 A/W|
|Dark current (max.)||2000 pA|
|Cutoff frequency (typ.)||25 MHz|
|Terminal capacitance (typ.)||10 pF|
|Measurement condition||Typ. Ta=25 ℃, per one element (except for photosensitive area), unless otherwise noted,
Photosensitivity: λ=960 nm
