Si photodiode array

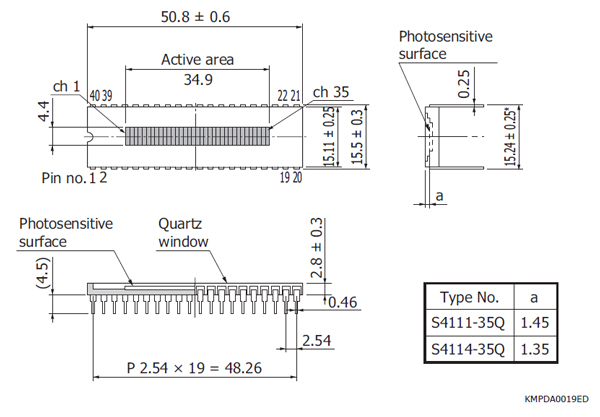

The S4111-35Q is a Si photodiode linear array mounted in a ceramic DIP (Dual Inline Package). This photodiode array is primarily developed for low-light-level detection such as spectrophotometry, and cover a wide spectral range from UV to near infrared light. Since all elements can be used with a reverse bias for charge storage readout, The S4111-35Q is able to detect low level light with high sensitivity. Cross-talk between elements is minimized to maintain signal purity. Special filters can be attached as the input window (custom order products).
|Element size (per 1 element)||0.9 × 4.4 mm|
|Number of elements||35|
|Reverse voltage (max.)||15 V|

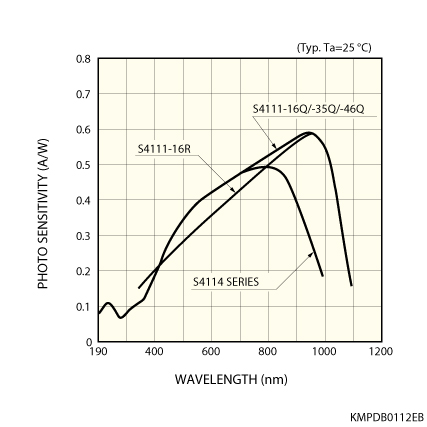

|Spectral response range||190 to 1100 nm|
|Peak sensitivity wavelength (typ.)||960 nm|
|Photosensitivity (typ.)||0.58 A/W|
|Dark current (max.)||10 pA|
|Rise time (typ.)||1.2 μs|
|Terminal capacitance (typ.)||550 pF|
|Measurement condition||Typ. Ta=25 ℃, unless otherwise noted
per one element, Photosensitivity: λ=960 nm, Dark current: VR=10 mV, Rise time: VR=0 V, Terminal capacitance: VR=0 V
