D-type socket assembly


The E13643 is a D-type socket assembly designed for TO-8 metal package photomultiplier tubes. It uses transistor circuit for the voltage divider circuit, making it ideal for use in high output applications.

Applicable PMT TO-8 metal package PMT
Supply Voltage Polarity -
[Max. Rating] Insulation Voltage (Case-Pins) 1100 V
[Max. Rating] Voltage Divider Current 0.163 mA
Leakage Current in Signal Max. 1.0 x 10-10 A
Max. Linear Output in DC Mode 100 μA
Signal Output DC / Pulse

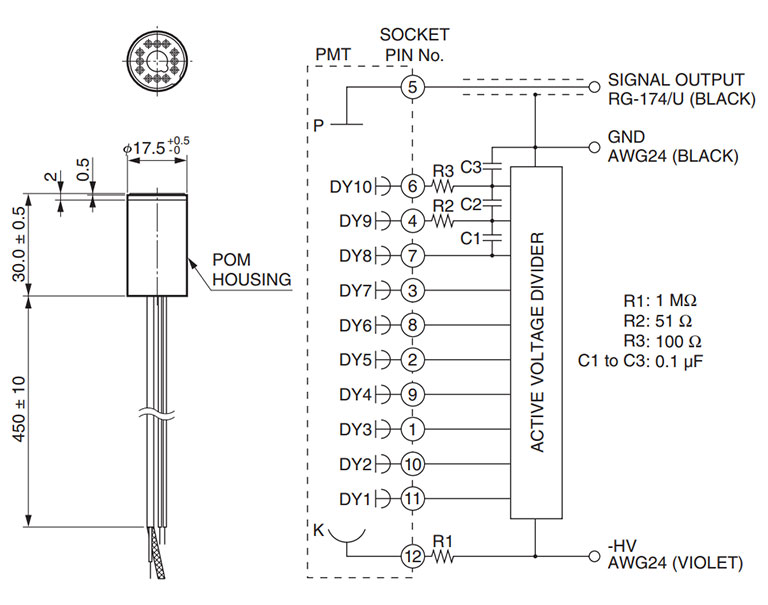

Dimensional outline (Unit: mm)
