DA-type socket assembly
The C16138 series is DA type socket assemblies designed for metal package photomultiplier tube R9880U. A voltage-divider circuit and an amplifier are incorporated in the same package.
The photomultiplier tube's low-level, high-impedance current can be converted into a low-impedance voltage output. The C16138 series is compact and you can choose the product that best suits your application from the frequency bands of 200 kHz(C16138-01), 2 MHz(C16138-02) and 20 MHz(C16138-03).

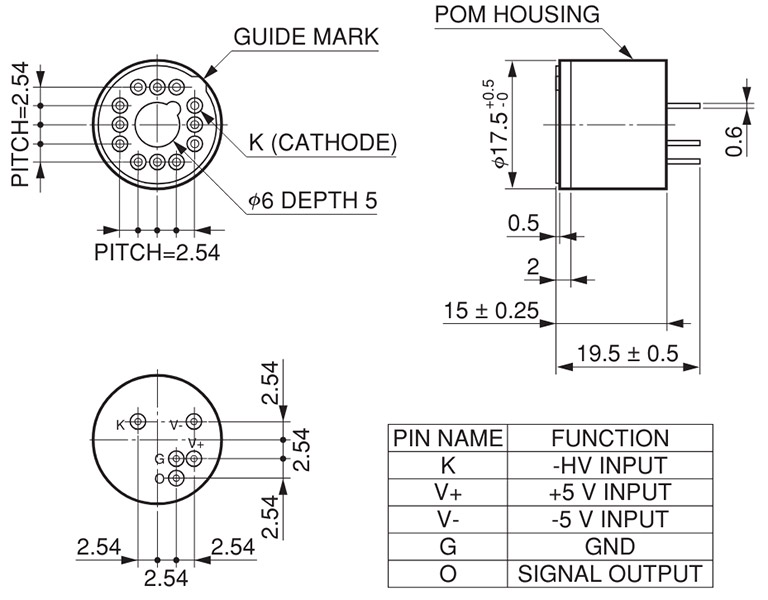

|Applicable PMT||R9880U series|
|[Max. Rating] Supply Voltage for Amplifier||+/-5.5 V|
|[Max. Rating] Supply Voltage for Divider||-1100 V|
|[Max. Rating] Operating Ambient Temperature||0 to +40 ℃|
|[Max. Rating] Storage Temperature||-15 to +60 ℃|
|Frequency Bandwidth (-3 dB)||DC to 200 kHz|
|Current to Voltage Conversion Factor||0.6 V/μA(Load resistance = 10 kΩ) / 0.3 V/μA(Load resistance = 50 Ω)|
|Max. Output Signal Voltage||+3.5 V(Load resistance = 10 kΩ) / +1.6 V(Load resistance = 50 Ω)|
|Offset Voltage Max.||+/-2 mV(Load resistance = 10 kΩ) / +/-1 mV(Load resistance = 50 Ω)|
|Output Noise Voltage (rms) Typ.||0.2 mV|
|Supply Voltage for Amplifier||+/-5 V|
|Recommended Supply Voltage for Divider||‐500 to -1000 V|
|Divider Circuit Current Typ.||289 μA (at -1000 V)|
|Weight Typ.||4.4 g|
