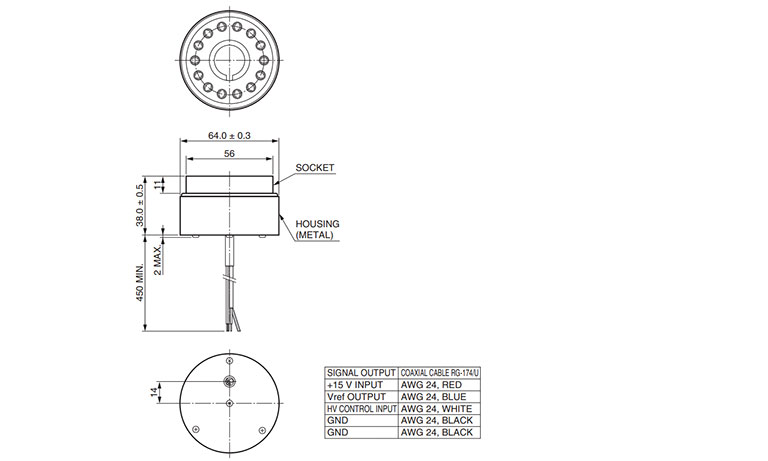

DP-type socket assembly
The C13002-0x is a high voltage power supply socket assembly for 51 mm (2 inch), 76 mm (3 inch) diameter head-on photomultiplier tubes with 8 stage dynode, incorporating a regulated high voltage power supply and an active voltage divider. It enables simple yet stable photomultiplier tube operations with extended DC output linearity by only supplying +15 V and 0 V to +6 V for high voltage adjustments.
|Type||High Voltage Power Supply Socket Assembly (DP type)|
|Applicable PMT||8-stage dynode Head-on type|
|Input Voltage||+15 ± 1 V|
|Max. Input Voltage||18 V|
|Max. Input Current||65 mA|
|[PMT] Linear DC Output Current Min.||100 μA|
|[PMT] Anode Ripple Noise Typ.||0.5 mVp-p|
|[HV Power Supply] Output Voltage Range||0 to -1500 V|
|[HV Power Supply] Recommended Output Voltage Range||-200 to -1500 V|
|[HV Power Supply] Line Regulation Against ±1 V Input Charge Typ.||±0.01 %|
|[HV Power Supply] Output Voltage Control||Control voltage (0 to +6 V) or potentiometer (50 kΩ)|
|[HV Power Supply] Recommended Control Voltage Range||+0.8 to +6 V|
|[HV Power Supply] Controll Voltage Input Impedance||100 kΩ|
|[HV Power Supply] Temperature Coefficient Typ.||±0.01 %/℃|
|Operating Ambient Temperature||0 to +45 ℃|
|Storage Temperature||-15 to +60 ℃|
|Weight Typ.||122 ｇ|
