DP-type socket assembly

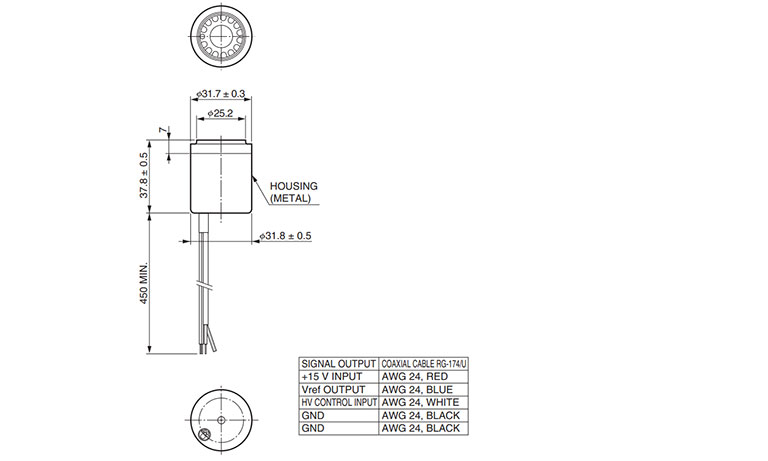

The C13003-01 is a high voltage power supply socket assembly for 25 mm (1inch) diameter head-on photomultiplier tubes, incorporating a regulated high voltage power supply and an active voltage divider. It enables simple yet stable photomultiplier tube operations with extended DC output linearity by only supplying +15 V and 0 V to +5 V for high voltage adjustments.
|Type||High Voltage Power Supply Socket Assembly (DP type)|
|Applicable PMT||25 mm dia. Head-on type|
|Input Voltage||+15 V +/-1 V|
|Max. Input Voltage||18 V|
|Max. Input Current||60 mA|
|[PMT] Linear DC Output Current Min.||100 μA|
|[PMT] Anode Ripple Noise Typ.||0.5 mVp-p|
|[HV Power Supply] Output Voltage Range||-200 V to -1250 V|
|[HV Power Supply] Line Regulation Against ±1 V Input Charge Typ.||+/-0.01 %|
|[HV Power Supply] Output Voltage Control||0 V to +5 V or external 50 kΩ potentiometer|
|[HV Power Supply] Output Voltage Programming Response Typ.||80 ms|
|[HV Power Supply] Temperature Coefficient Typ.||+/-0.01 %/℃|
|Operating Ambient Temperature||0 ℃ to +40 ℃|
|Storage Temperature||-15 ℃ to +60 ℃|
|Weight Typ.||40 ｇ|
