DAP-type socket assembly


The C14019-02 is a high voltage power supply socket assembly for 28 mm (1-1/8 inch) diameter head-on photomultiplier tubes (PMT), incorporating a regulated high voltage power supply, an active voltage divider, and a transimpedance amplifier, having a wide bandwidth (DC to 5 MHz). It enables simple yet stable PMT operations with extended DC output linearity by only supplying +/-15 V and connecting to a potentiometer or a 0 V to +6 V for high voltage adjustment.

Type High Voltage Power Supply Socket Assembly with Transimpedance Amplifier (DAP type)
Applicable PMT 28 mm dia. Head-on type
Input Voltage +/-15 V +/-1 V
Max. Input Voltage +/-18 V
Max. Input Current +82 mA / -20 mA
[PMT] Linear DC Output Current Min. 20 μA (Load resistance 50 Ω)
[HV Power Supply] Output Voltage Range 0 V to -1500 V
[HV Power Supply] Line Regulation Against ±1 V Input Charge Typ. +/-0.01 %
[HV Power Supply] Output Voltage Control 0 V to +6 V
[HV Power Supply] Controll Voltage Input Impedance 100 kΩ
[HV Power Supply] Output Voltage Programming Response Typ. 80 ms
[HV Power Supply] Temperature Coefficient Typ. +/-0.01 %/℃
[Amp] Frequency Bandwidth (-3 db) DC to 5 MHz
[Amp] Current to Voltage Conversion Factor 0.15 V/uA (Load resistance 50 Ω)
[Amp] Max. Output Signal Voltage +3 V (Load resistance 50 Ω)
[Amp] Output Signal Offset Voltage Typ. +/-10 mV
[Amp] Output Signal Ripple/Noise 10 mVrms (Typ.)
Operating Ambient Temperature 0 ℃ to +40 ℃
Storage Temperature -15 ℃ to +60 ℃
Weight Typ. 60 g

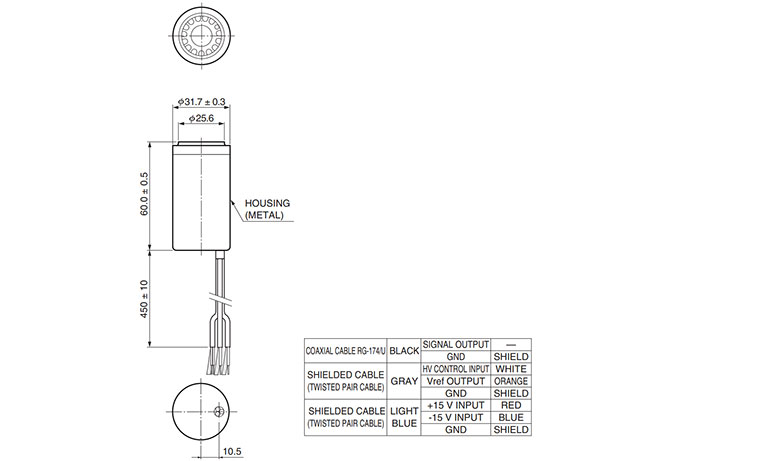

Dimensional outline (Unit: mm)
