HV power supply module

C11152-51

Compact PC-board mountable high voltage power supply, especially designed for photomultiplier tubes.

Specifications

Type Compact type
Input Voltage 12 V
Input Current (with no load) Typ. 50 mA
Input Current (with full load) Typ. 220 mA
Max. Output Voltage 1500 V
Max. Output Current 1 mA
Specification Guaranteed Output Voltage Range +240 to +1500 V
Line Regulation ±0.01 (against ±0.5 V input change) %
Load Regulation ±0.01 %
Ripple/Noise 5 (>5kHz), 8 (<=5kHz) mV
Temperature Coefficient ±0.005 %/℃
Operating Ambient Temperature 0 to +50 ℃
Operating Ambient Humidity Below 80 %
Storage Temperature -20 to +60 ℃
Storage Humidity Below 80 %

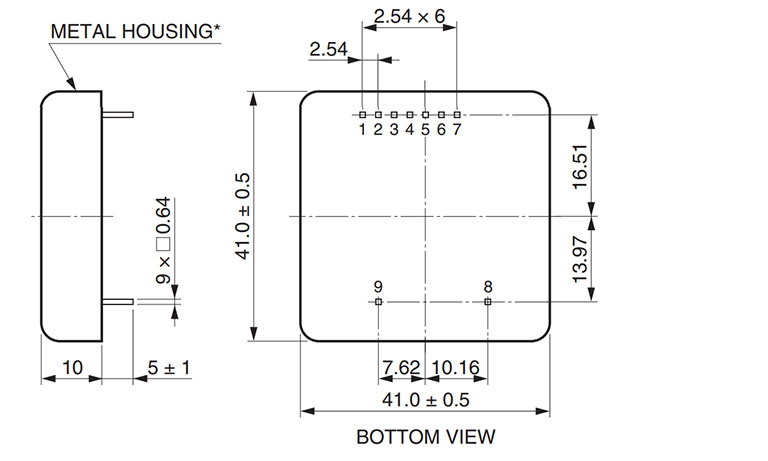

Dimensions (W x H x D) 41 x 10 x 41 mm
Weight 38 g
