Photomultiplier tube assembly


H15547-07 is a multi-alkali photocathode MCP-PMT assembly. The H15547-07 has an effective area of Φ11 mm and a spectral response range of 160 nm to 850 nm.

Assembly Size Dia.45 mm
Photocathode Area Shape Round
Photocathode Area Size Dia.11 mm
Wavelength (Short) 160 nm
Wavelength (Long) 850 nm
Wavelength (Peak) 430 nm
Photocathode Material Multialkali
Window Material Synthetic silica
Dynode Structure MCP
Dynode Stages 2
[Max. Rating] Anode to Cathode Voltage -2400 V
[Cathode] Luminous Sensitivity Min. 100 μA/lm
[Cathode] Luminous Sensitivity Typ. 180 μA/lm
[Cathode] Red/White Ratio (R-68) Typ. 0.15
[Anode] Luminous Sensitivity Typ. 100 A/lm
[Anode] Gain Typ. 5.6 x 105
[Anode] Dark Current (after 30min.) Typ. 2 nA
[Anode] Dark Current (after 30min.) Max. 10 nA
[Time Response] Rise Time Typ. 0.19 ns
[Time Response] Transit Time Spread Typ. 0.04 ns

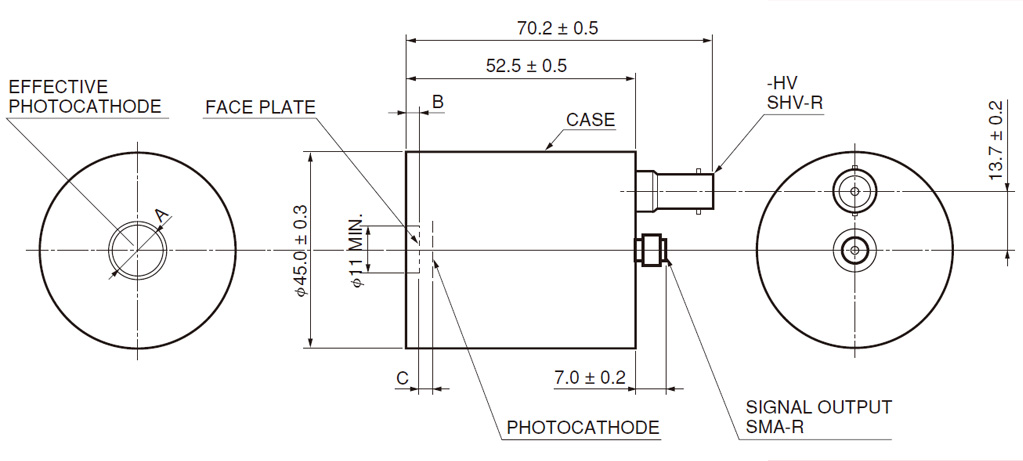

Dimensional outline (Unit: mm)


Suffix A B C
-07 Φ11 Min. 3.0±0.2 3.2±0.1
-40 Φ10 Min.
2.8±0.2 4.2±0.1
