Multianode photomultiplier tube assembly

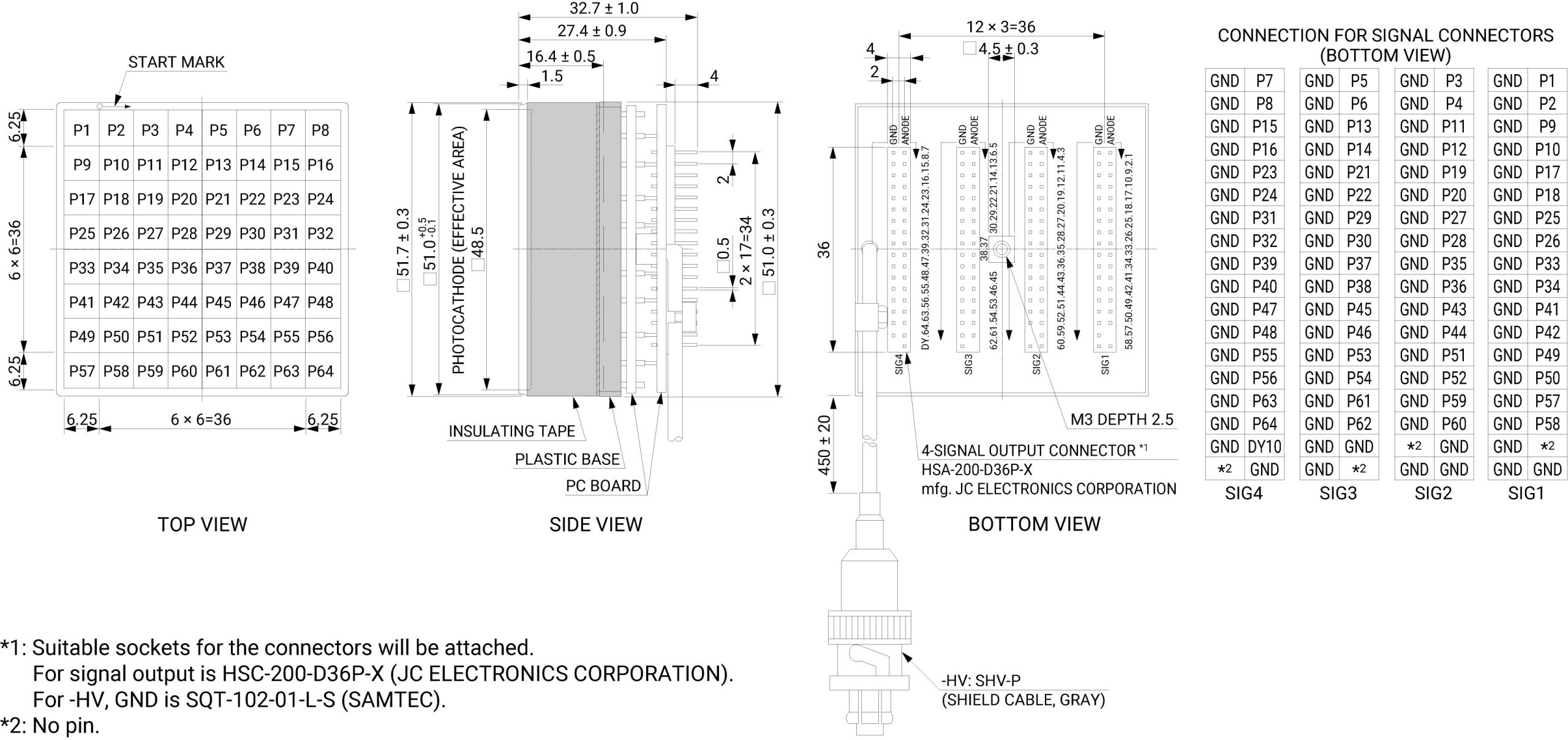

52 x 52 mm PMT assembly, Built-in PMT : R12699-00-M64
H12700A series / H14220A : Cable input type
H12700B series / H14220B : Connector input type
H12700A / H12700A-10 : 300 nm to 650 nm
H12700A-03 : 185 nm to 650 nm
H14220A : 300 nm to 700 nm
|Assembly Size||52 x 52 mm|
|PMT Tube Size||- mm|
|Built-in PMT Type No.||R12699-00-M64|
|Photocathode Area Shape||Square|
|Photocathode Area Size||6 x 6 x (64) mm|
|Wavelength (Short)||300 nm|
|Wavelength (Long)||650 nm|
|Wavelength (Peak)||380 nm|
|Window Material||Borosilicate glass|
|Dynode Structure||Metal channel|
|[Max. Rating] Anode to Cathode Voltage||-1100 V|
|[Max. Rating] Average Anode Current||0.225 mA|
|Anode to Cathode Supply Voltage||-1000 V|
|[Cathode] Luminous Sensitivity Min.||60 μA/lm|
|[Cathode] Luminous Sensitivity Typ.||95 μA/lm|
|[Cathode] Blue Sensitivity Index (CS 5-58) Typ.||12|
|[Anode] Luminous Sensitivity Typ.||110 A/lm|
|[Anode] Gain Typ.||1.5 x 106|
|[Anode] Dark Current (after 30min.) Typ.||0.1/ch nA|
|[Time Response] Rise Time Typ.||0.52 ns|
|[Time Response] Transit Time Typ.||4.9 ns|
|[Time Response] Transit Time Spread Typ.||0.35 ns|
|[Anode] Pulse Linearity (2% deviation)||0.8/ch mA|
