Photomultiplier tube module
The H9305 series photomultiplier tube modules contain a high-voltage power supply circuit and a 13 mm (1/2") diameter side-on photomultiplier tube in a compact aluminum housing. The 13-mm (1/2") side-on photomultiplier tube has a reflection mode photocathode that delivers high quantum efficiency at wavelengths above 600 nm, an adequate gain of up to 10e(7) and fast time response. High S/N ratio can be obtained even when measuring extremely low level light at high speeds.The H9305 series uses a Cockcroft-Walton circuit with low power consumption. Flexible cables are used for easy installation in equipment.
|Photocathode Area Shape||Square|
|Photocathode Area Size||3.7 x 13.0 mm|
|Wavelength (Short)||185 nm|
|Wavelength (Long)||900 nm|
|Wavelength (Peak)||450 nm|

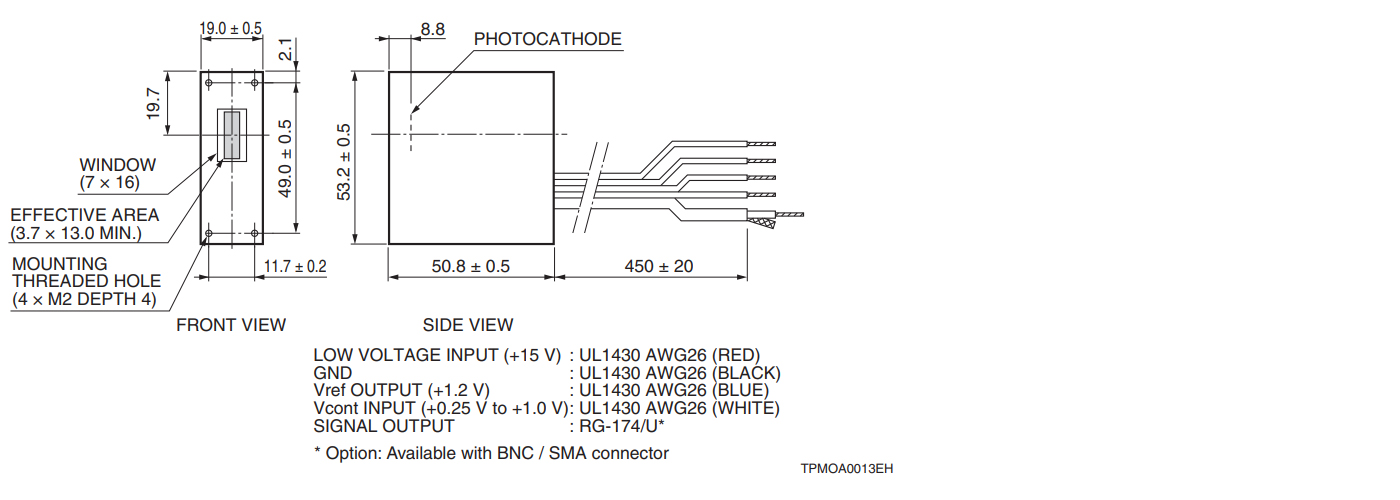

|Dimension (W x H x D)||19.0 x 53.2 x 50.8 mm|
|Input Voltage||+11.5 to +15.5 V|
|Max. Input Voltage||18 V|
|Max. Input Current||7 mA|
|Max. Output Signal Current||10 μA|
|Max. Control Voltage||1.2 V|
|Recommended Control Voltage Adjustment Range||+0.25 to +1.0 V|
|[Cathode] Luminous Sensitivity Min.||350 μA/lm|
|[Cathode] Luminous Sensitivity Typ.||500 μA/lm|
|[Cathode] Blue Sensitivity Index (CS 5-58) Typ.||-|
|[Cathode] Red/White Ratio Typ.||0.4|
|[Cathode] Radiant Sensitivity Typ.||105 mA/W|
|[Anode] Luminous Sensitivity Min||1000 A/lm|
|[Anode] Luminous Sensitivity Typ.||2000 A/lm|
|[Anode] Radiant Sensitivity Typ.||4.2 x 105 A/W|
|[Anode] Dark Current (after 30min.) Typ.||2 nA|
|[Anode] Dark Current (after 30min.) Max.||10 nA|
|[Time Response] Rise Time Typ.||1.4 ns|
|Ripple Noise (peak to peak) Max.||0.5 mV|
|Settling Time Max.||10 s|
|Operating Ambient Temperature||+5 to +50 ℃|
|Storage Temperature||-20 to +50 ℃|
