Photomultiplier tube module
The H11902 series is a photomultiplier tube module containing a metal package PMT, a low-power consumption high-voltage power supply circuit, and a low-noise amplifier. The amplifier converts the PMT current output to a voltage output so that the signal can be easily processed. Also, the amplifier is connected close to the PMT anode output pin in order to make the signal less affected by external noise.
+5V input type H10722 series are available.
|Photocathode Area Shape||Round|
|Photocathode Area Size||Dia.8 mm|
|Wavelength (Short)||230 nm|
|Wavelength (Long)||870 nm|
|Wavelength (Peak)||400 nm|

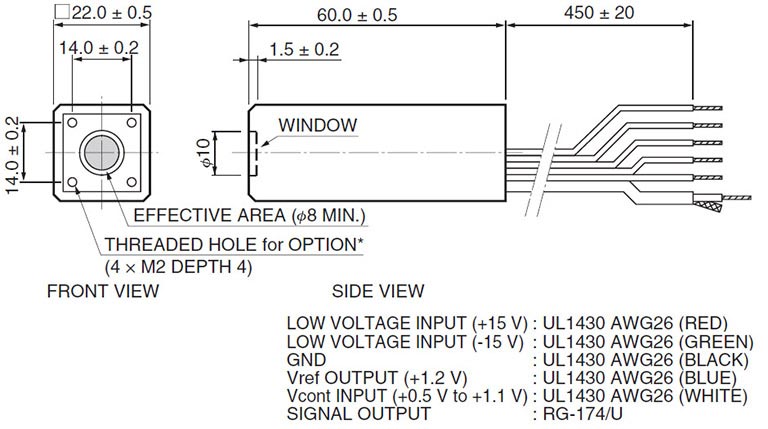

|Dimension (W x H x D)||60.0 x 22.0 x 22.0 mm|
|Input Voltage||+/-11.5 to +/-15.5 V|
|Max. Input Voltage||+/-16 V|
|Max. Input Current||+11 / -1 mA|
|Max. Output Signal Voltage||+10 (Load resistance 10 k-ohm) V|
|Max. Control Voltage||+1.1 (Input impedance 30 k-ohm) V|
|Recommended Control Voltage Adjustment Range||+0.5 to +1.1 (Input impedance 30 k-ohm) V|
|[Cathode] Luminous Sensitivity Min.||100 μA/lm|
|[Cathode] Luminous Sensitivity Typ.||200 μA/lm|
|[Cathode] Red/White Ratio Typ.||0.2|
|[Cathode] Radiant Sensitivity Typ.||77 mA/W|
|[Anode] Luminous Sensitivity Min||1.0 x 108 V/lm|
|[Anode] Luminous Sensitivity Typ.||4.0 x 108 V/lm|
|[Anode] Radiant Sensitivity Typ.||150 V/nW|
|[Anode] Vout Depending on PMT Dark Current Typ.||1 mV|
|[Anode] Vout Depending on PMT Dark Current Max.||10 mV|
|Current to Voltage Coversion Factor||1 V/uA|
|Output Offset Voltage Typ.||+/-1 mV|
|Ripple Noise (peak to peak) Max.||1 mV|
|Settling Time Max.||0.2 s|
|Operating Ambient Temperature||+5 to +50 ℃|
|Storage Temperature||-20 to +50 ℃|
