Microchannel plate photomultiplier tube


45 mm dia., MCP-PMT, GaAs photocathode (Effective area :10 mm dia./Spectral response : 370 nm to 920 nm)

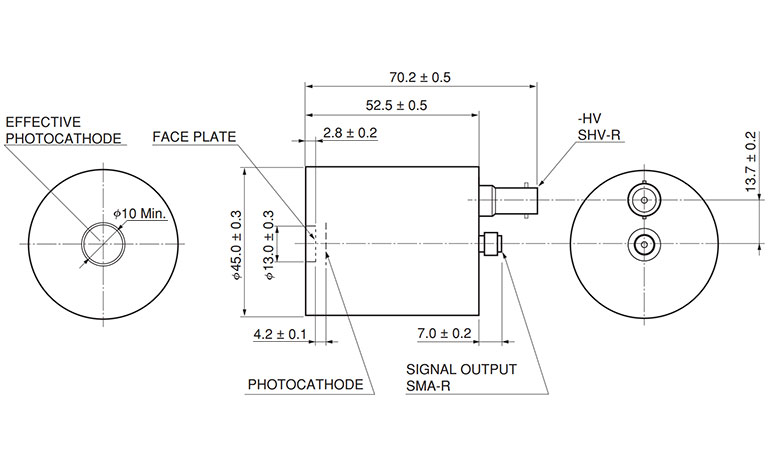

Tube Size Dia.45 mm
Photocathode Area Shape Round
Photocathode Area Size Dia.10 mm
Wavelength (Short) 370 nm
Wavelength (Long) 920 nm
Wavelength (Peak) 750 nm to 850 nm
Photocathode Material GaAs
Window Material Borosilicate glass
Dynode Structure MCP
Dynode Stages 2
[Max. Rating] Anode to Cathode Voltage -3400 V
[Cathode] Luminous Sensitivity Min. 400 μA/lm
[Cathode] Luminous Sensitivity Typ. 700 μA/lm
[Cathode] Radiant Sensitivity Typ. 85 μA/W
[Anode] Luminous Sensitivity Typ. 210 A/lm
[Anode] Gain Typ. 3.0 x 105
[Time Response] Rise Time Typ. 200 ps
[Time Response] Transit Time Spread Typ. 145 ps
