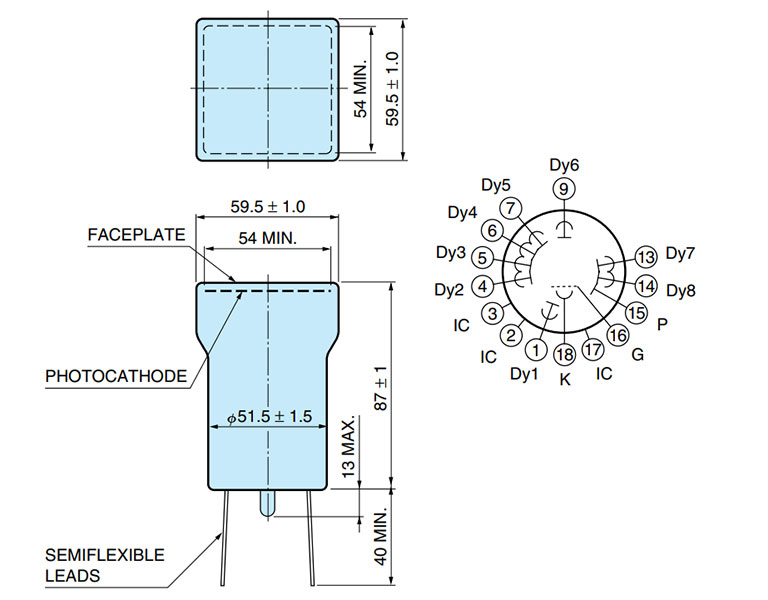

|Type||Special envelope type|
|Photocathode Area Shape||Square|
|Photocathode Area Size||54 x 54 mm|
|Wavelength (Short)||300 nm|
|Wavelength (Long)||650 nm|
|Wavelength (Peak)||420 nm|
|Spectral Response Curve Code||400K|
|Window Material||Borosilicate glass|
|[Max. Rating] Anode to Cathode Voltage||1500 V|
|[Max. Rating] Average Anode Current||0.1 mA|
|Anode to Cathode Supply Voltage||1000 V|
|[Cathode] Luminous Sensitivity Min.||80 μA/lm|
|[Cathode] Luminous Sensitivity Typ.||110 μA/lm|
|[Cathode] Blue Sensitivity Index (CS 5-58) Typ.||12|
|[Cathode] Radiant Sensitivity Typ.||95 mA/W|
|[Anode] Luminous Sensitivity Min.||3 A/lm|
|[Anode] Luminous Sensitivity Typ.||30 A/lm|
|[Anode] Radiant Sensitivity Typ.||2.6 x 104 A/W|
|[Anode] Gain Typ.||2.7 x 105|
|[Anode] Dark Current (after 30min.) Typ.||2 nA|
|[Anode] Dark Current (after 30min.) Max.||20 nA|
|[Time Response] Rise Time Typ.||9.5 ns|
|[Time Response] Transit Time Typ.||52 ns|
