Neutral atoms
and trapped ions

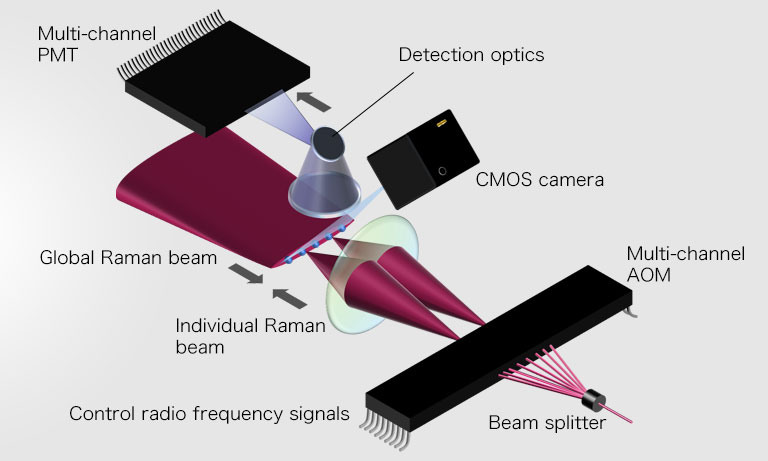

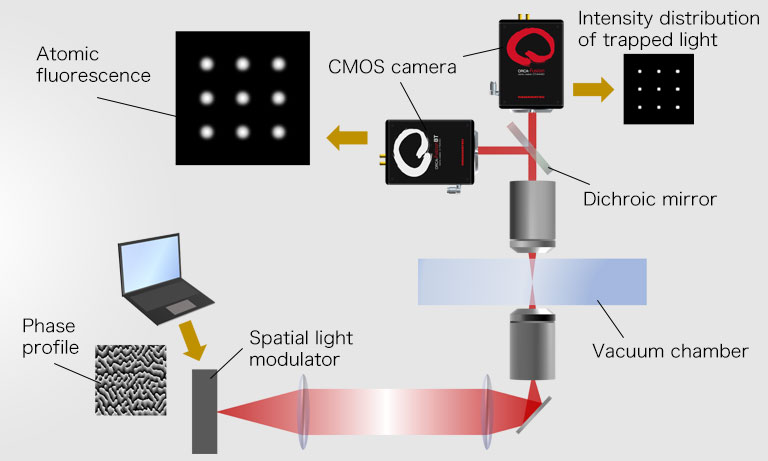

Neutral atoms and trapped ions use laser cooling to cool down the atoms or ions, which in turn slows down their motion. Optical tweezers are used to trap neutral atoms while traps such as Penning traps or Paul traps utilize electric fields to create potentials that confine ions. A large number of beam spots can be generated by combining the spatial light phase modulator (LCOS-SLM) with an appropriate phase pattern and optical system. Trapping neutral atoms at those spot positions allows neutral atoms to be arranged in any array configuration. Neutral atoms and trapped ions can be configured in a "superposition state," which means that their state is encoded using both the “0” state and “1” state also known as a qubit. Trapped ions’ and neutral atoms’ positions are monitored using a high-sensitivity camera. Observing the fluorescence, or lack thereof, for trapped ions and neutral atoms indicates the state of the qubit. Photon counting detectors such as PMTs are typically used for reading out the qubit state of trapped ions while EM-CCD cameras are used for reading out the qubit state of neutral atoms. Quantum mechanical behavior can be manipulated to realize applications such as quantum computing and quantum simulations.

Neutral atoms and Ion trap

Neutral atoms

Recommended products

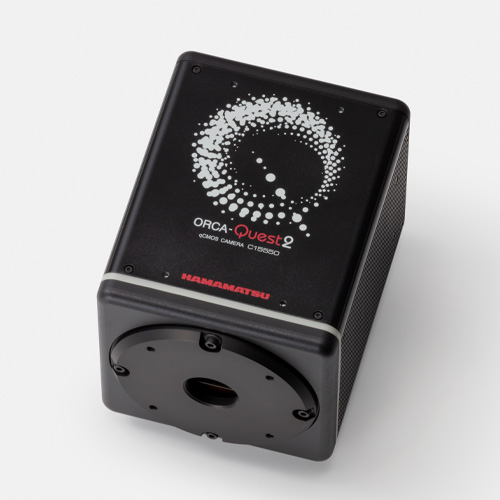

ORCA-Quest 2 qCMOS^® camera C15550-22UP

The ORCA-Quest 2 is our next-generation qCMOS camera. Its primary feature is its ultra-low noise readout speed of the back-thinned chip for when your signal is lurking at the noise floor. In Photon Number Resolving mode its readout speed at full frame (4096 × 2304) is 24.5 fps and is only .3 electrons rms. Its 4.5 micron pixels make it an ideal Nyquist match with a 40X objective so you not only get the larger field of view, but a more transmissive objective, and the best detectivity currently possible. The Quest 2 also has a fast readout and when use with the high speed CoaXpress board realizes 120 fps full frame and ~19,000 fps at just four lines. There are a robust variety of triggering modes for light sheet / laser readout synchronizations. Single molecule localization? See the nuance in your sample, not the noise in your system. The Quest 2 has a raw data readout mode. Trying to train AI? This is the camera that will have the quietest background.

ORCA-Fusion BT Digital CMOS camera C15440-20UP

The ORCA-Fusion BT is the flagship of our fleet of sCMOS cameras. It’s back-thinned chip has 6.45 micron pixels so it’s an ideal Nyquist match with ~60X objectives. The Fusion BT’s affordability and versatility makes it an ideal choice for core facilities where shared resources have to meet the needs of a diverse variety of applications. Still the BT produces amazing low-noise images that make it the top performer in its class. Light sheet, single molecule, spinning disc confocal, your deconvolution software will reward you for giving it low camera noise images to process.

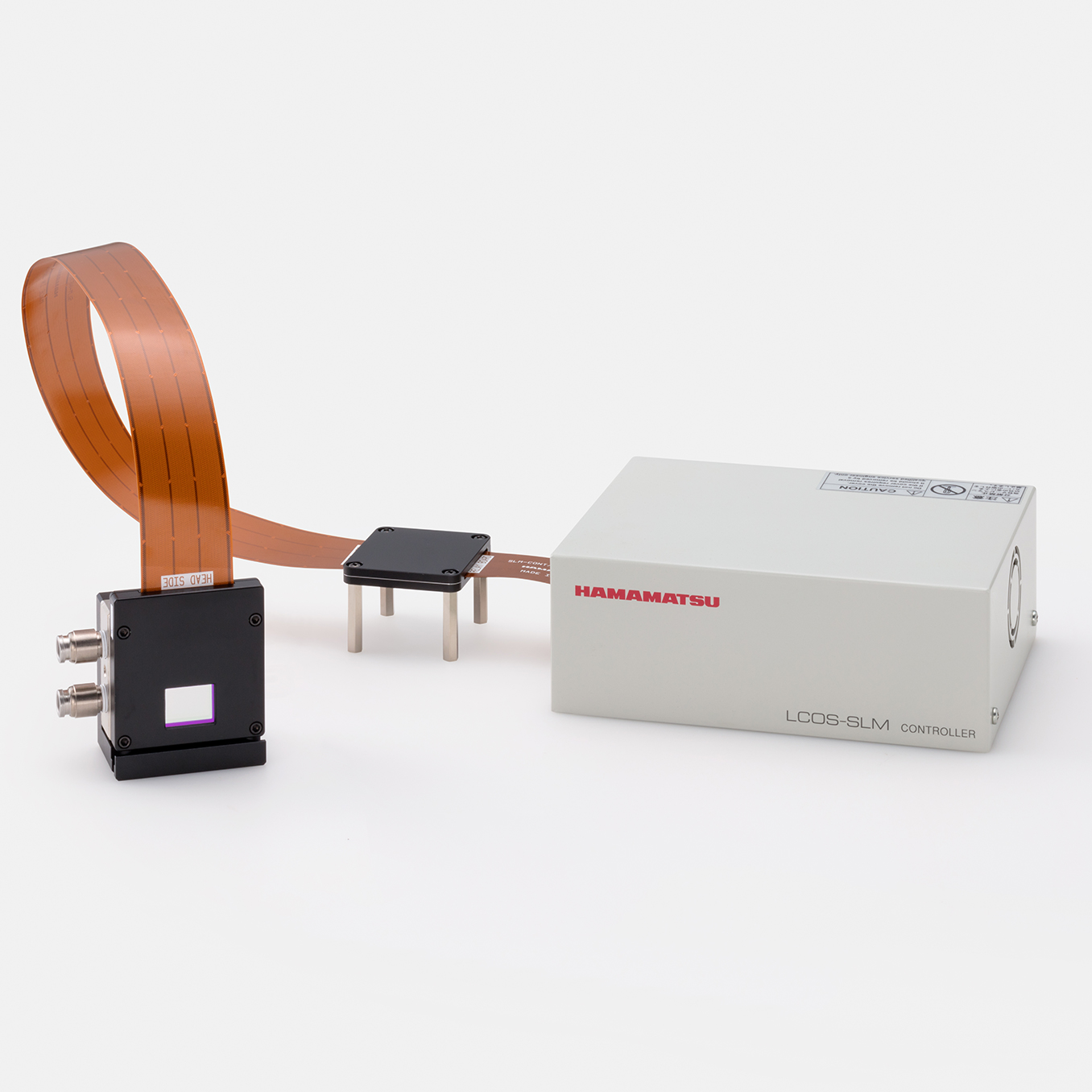

X15213 product photo

LCOS-SLM (optical phase modulator) X15213 series

The LCOS-SLM X1513 series delivers precision in optical phase modulation, enabling cutting-edge advancements in holography, optical trapping, and laser beam shaping with its high-resolution and rapid response capabilities, ensuring researchers and engineers achieve the utmost accuracy in their optical applications.

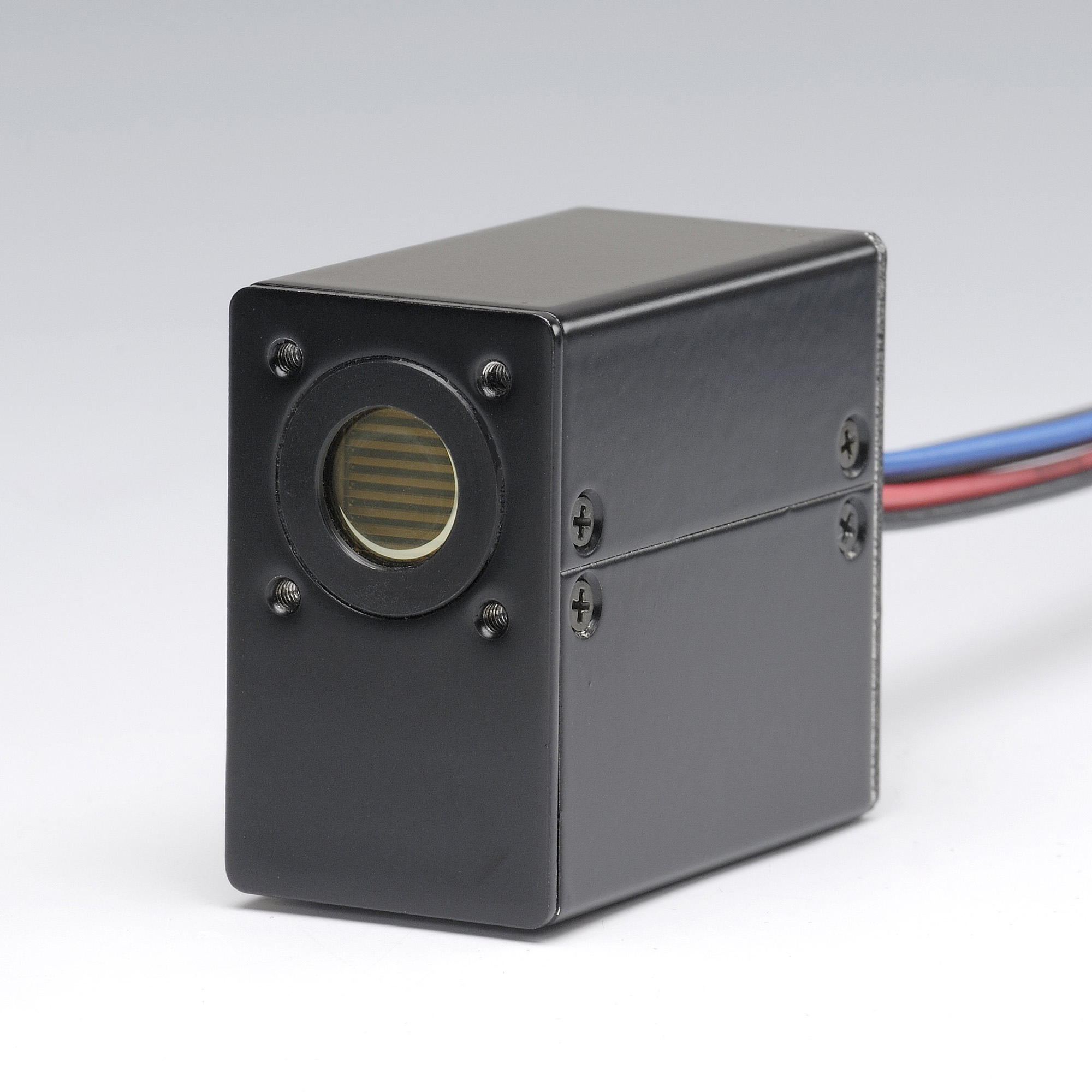

h10682

Photon counting head H10682-210

The H10682-210 PMT redefines photon detection with exceptional sensitivity and dynamic range. Its versatility spans UV to NIR wavelengths, adapting seamlessly to diverse applications. Low noise and high-speed response ensure real-time, accurate data capture. User-friendly operation and compatibility with optical systems simplify integration. Backed by a legacy of reliability, this PMT empowers researchers in fields from biophotonics to quantum optics, making it the trusted choice for precision photonics.

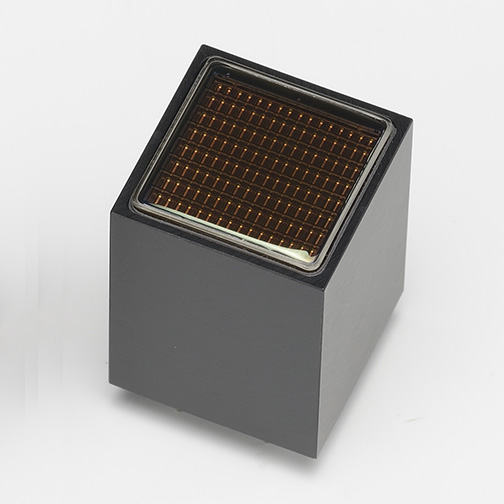

PMT assembly H12428
