Terahertz phase shifter
High-power applications of terahertz (THz) waves

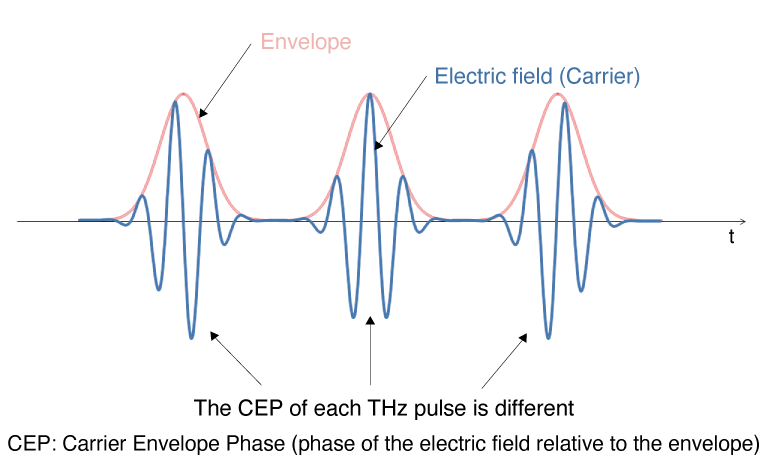

Fig.1 THz pulses
Terahertz (THz) waves are widely used in telecommunications and sensing technologies. Recent advances in THz generation have enabled the production of high-power THz pulses, accelerating research into how materials respond to intense THz irradiation. This research is expected to lead to the discovery of new material properties and the development of innovative technologies.
Although often overlooked, the electric field structure within THz pulses must be carefully discerned when investigating their interactions with materials (Fig. 1).
Mechanism of the THz phase shifter

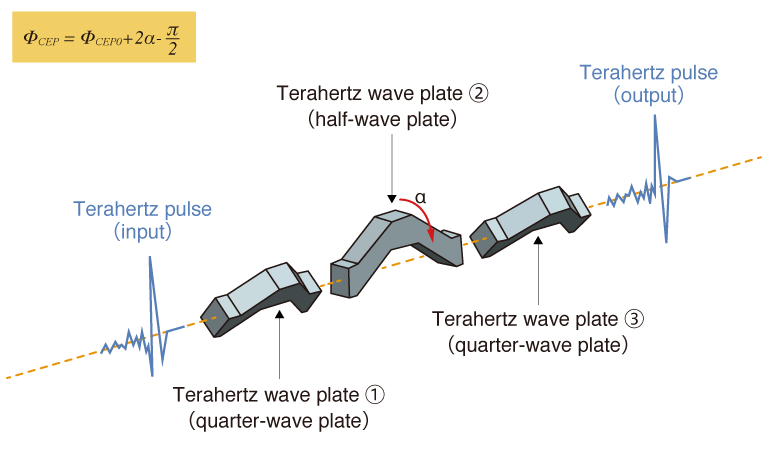

Fig.2 THz phase shifter
The THz phase shifter (Fig. 2) plays a vital role in high-power THz applications.

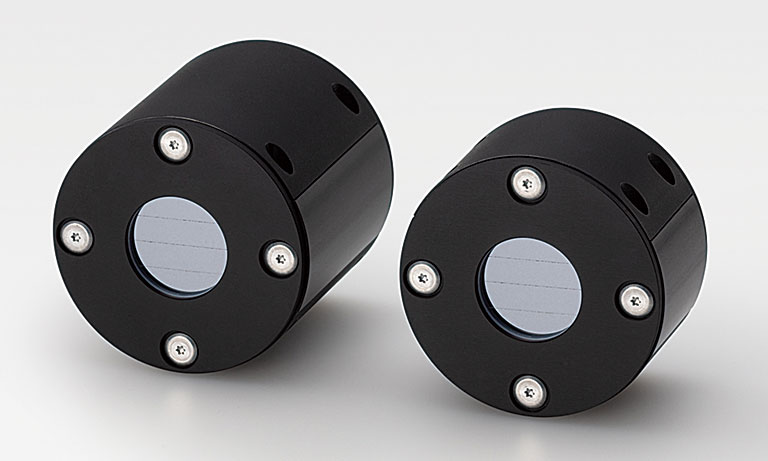

It consists of multiple terahertz wave plates developed by our company, enabling carrier-envelope phase (CEP) control of THz pulses. Each wave plate is a silicon prism that manipulates the polarization of THz waves.
A THz pulse passing through terahertz wave plate ① (quarter-wave plate: A16394-04) becomes circularly polarized. It then passes through terahertz wave plate ② (half-wave plate: A16394-02), and finally through terahertz wave plate ③ (quarter-wave plate: A16394-04), returning to its original linear polarization. By rotating the half-wave plate, the desired CEP shift can be achieved based on the rotation angle (α). In certain configurations, the terahertz wave plate ③ can be functionally replaced by a polarizer.
Principle
1. Uniform phase shift across all wavelengths
To control the CEP of ultrashort pulses—including THz pulses—it is necessary to apply the same phase shift across all wavelengths. However, since THz pulses contain a wide range of wavelengths (e.g., 100 µm and 500 µm), achieving uniform phase control is technically challenging. When passing through a glass plate of uniform thickness, all wavelengths experience the same time delay. However, in terms of phase, the shorter 100 µm wave undergoes five times more phase shift than the longer 500 µm wave, simply because more wave cycles fit into the same time interval.
2. Phase control via polarization manipulation
The THz phase shifter controls phase by altering polarization—an effect known as the Berry phase, a type of geometric phase. To control the CEP of THz pulses using the Berry phase, the same polarization manipulation must be applied across all wavelengths.
3. Broadband polarization control using total internal reflection
Our terahertz wave plates utilize total internal reflection within silicon prisms to achieve broadband polarization control. This design ensures consistent polarization across nearly the entire THz spectrum. Additionally, the input and output beams are aligned, allowing the device to be rotated like a conventional wave plate.
Related products
Related applications: THz-optical STM

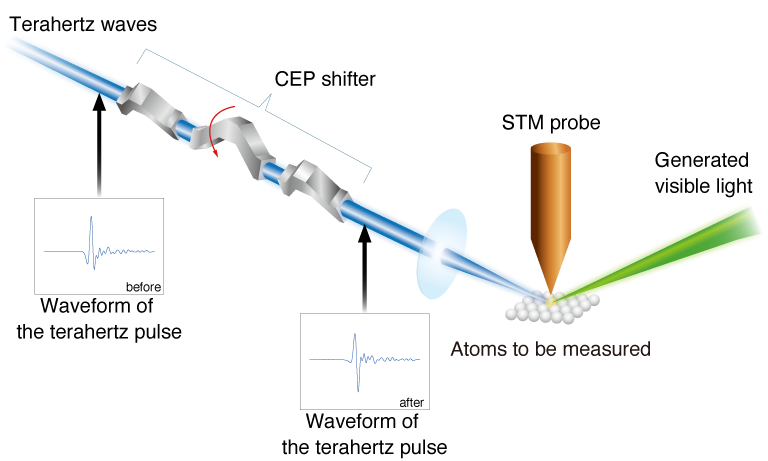

A Scanning Tunneling Microscope (STM) enables atomic-scale imaging by detecting tunneling current between a sharp probe and a sample. High-intensity THz pulses act as ultrafast voltage sources during their picosecond-duration pulses (10⁻¹² seconds), enabling time-resolved measurements.
The THz phase shifter can be used, for example, to reverse the polarity of this “voltage,” which in turn alters the observed molecular orbitals (e.g., LUMO and HOMO). While reversing the polarity is one example, the THz phase shifter enables continuous and precise control over the CEP of THz pulses—including intermediate states. This fine-tuned control allows researchers to probe transient charge-transfer states and other ultrafast phenomena with extreme spatiotemporal resolution.
