X-ray TDI camera
X-ray TDI camera C10650-361W is useful for in-line applications requiring high-speed operation with high sensitivity. TDI imaging is appropriate for applications where it is desired to record a linear movement, or where the aspect ratio of the subject being imaged is significantly asymmetric. Low brightness under high resolution usage, a problem with conventional line sensor cameras, is improved with this X-ray TDI camera, making it suitable for applications which require high resolution. Vertical X-ray TDI cameras that can be installed in narrow spaces are new additions to the series.
|Scintillator||FOS (Fiber optic plate with scintillator)|
|Effective X-ray tube voltage range||Approx. 25 kV to 90 kV*1|
|Number of pixels||10752 (H) × 128 (V)*2|

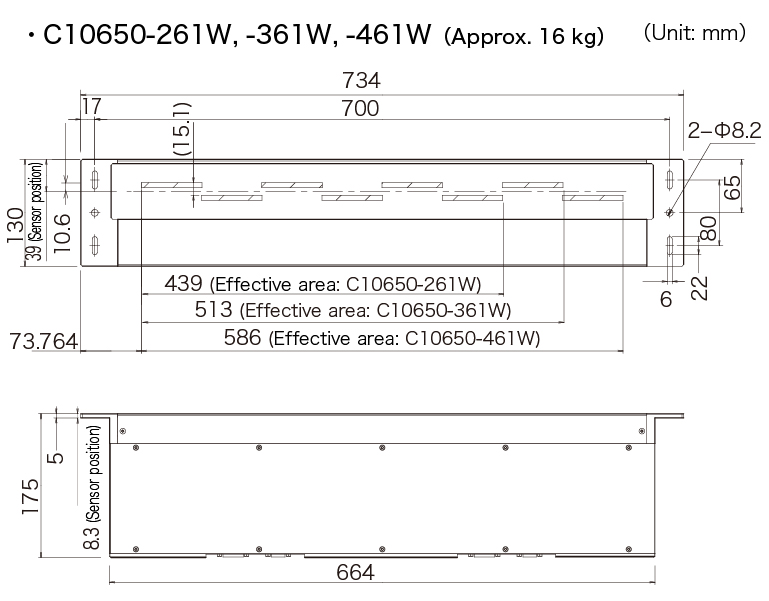

|X-ray sensitive area||513.2 mm (H) × 6.1 mm (V)*2|
|Line speed||0.178 m/min to 6.073 m/min|
|TDI line rate||1×1: Max. 2.109 kHz (6.073 m/min)
Binning 2×2: Max. 1.858 kHz (10.702 m/min)
|A/D converter||16 bit|
|External control interface||Camera Link Base Configuration|
|Output signals (Image data)||16 bit digital output|
|Pixel clock||16.0 MHz (Camera Link)|
|Power supply||DC +15 V|
|Power consumption||Approx. 25 VA + Approx. 30 VA*3|
