X-ray TDI camera C12300 series | Hamamatsu Photonics

X-ray TDI camera is useful for in-line applications requiring high-speed operation, high sensitivity and high resolution with wide area.

C12300 series is drastically improved the line speed up to 144 m/min. With bidirectional scanning operation, it enables to capture the objects effectively and improves the machine cycle time.

Catalog 3.2 MB/PDF

Features
Specifications

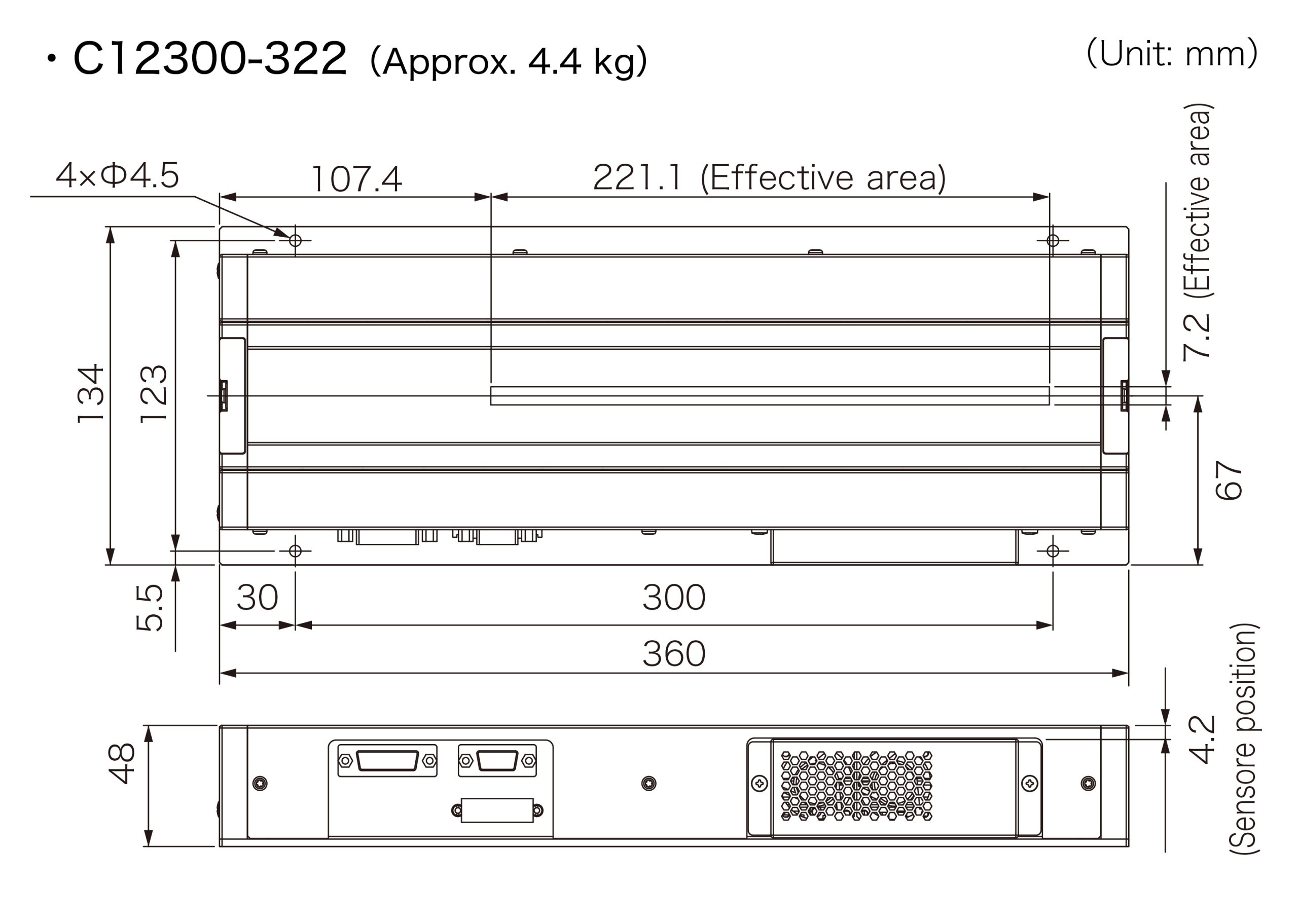

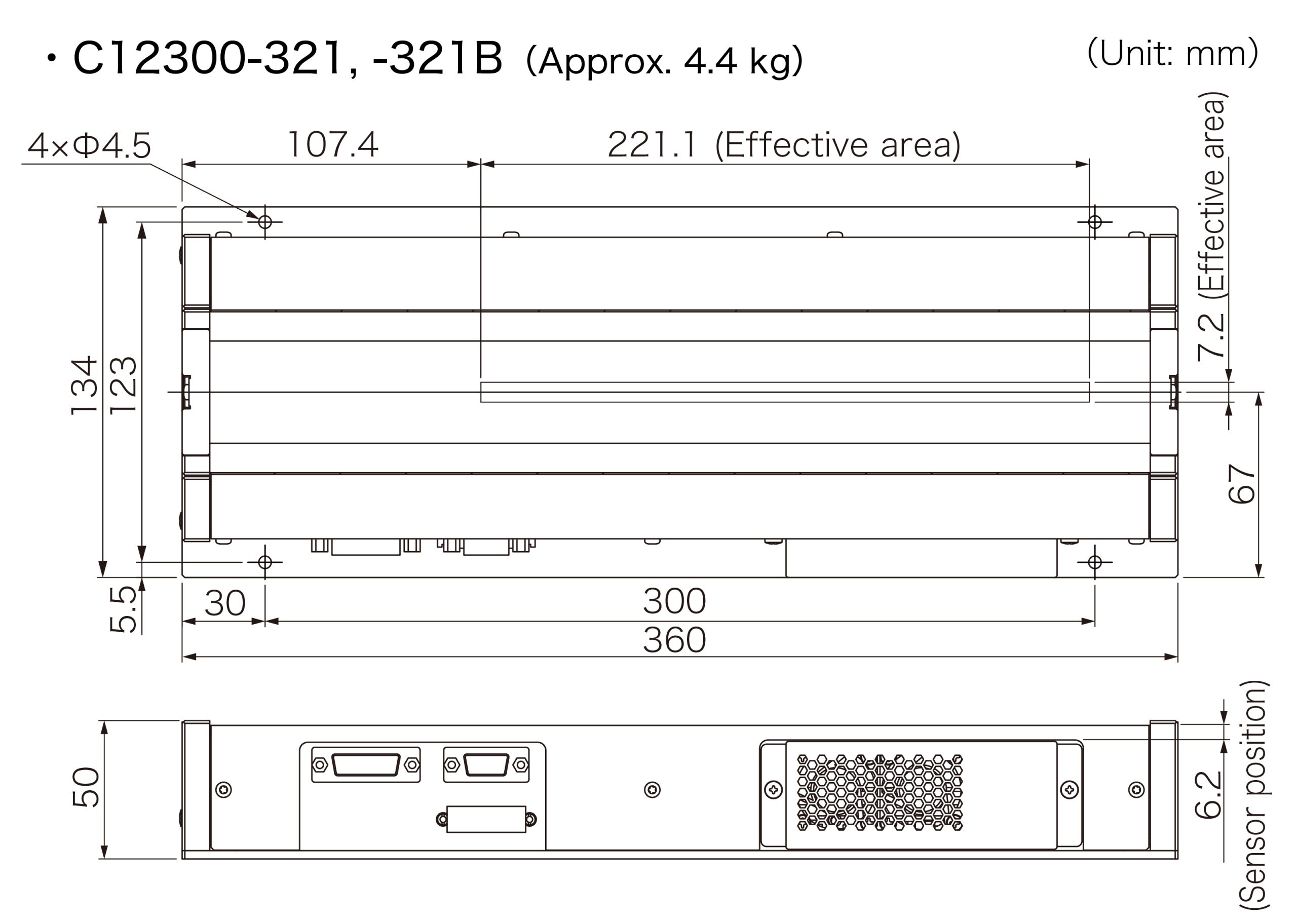

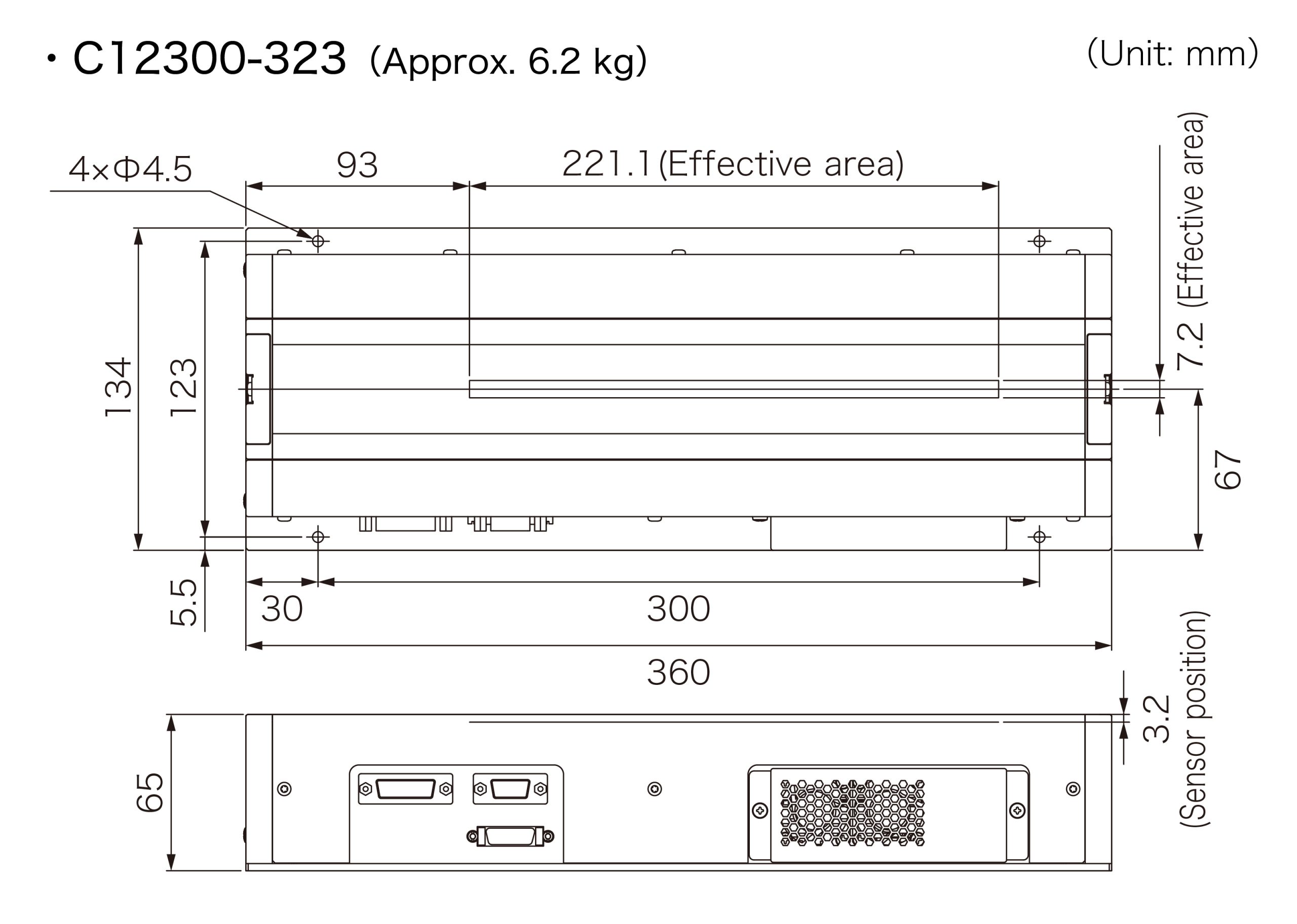

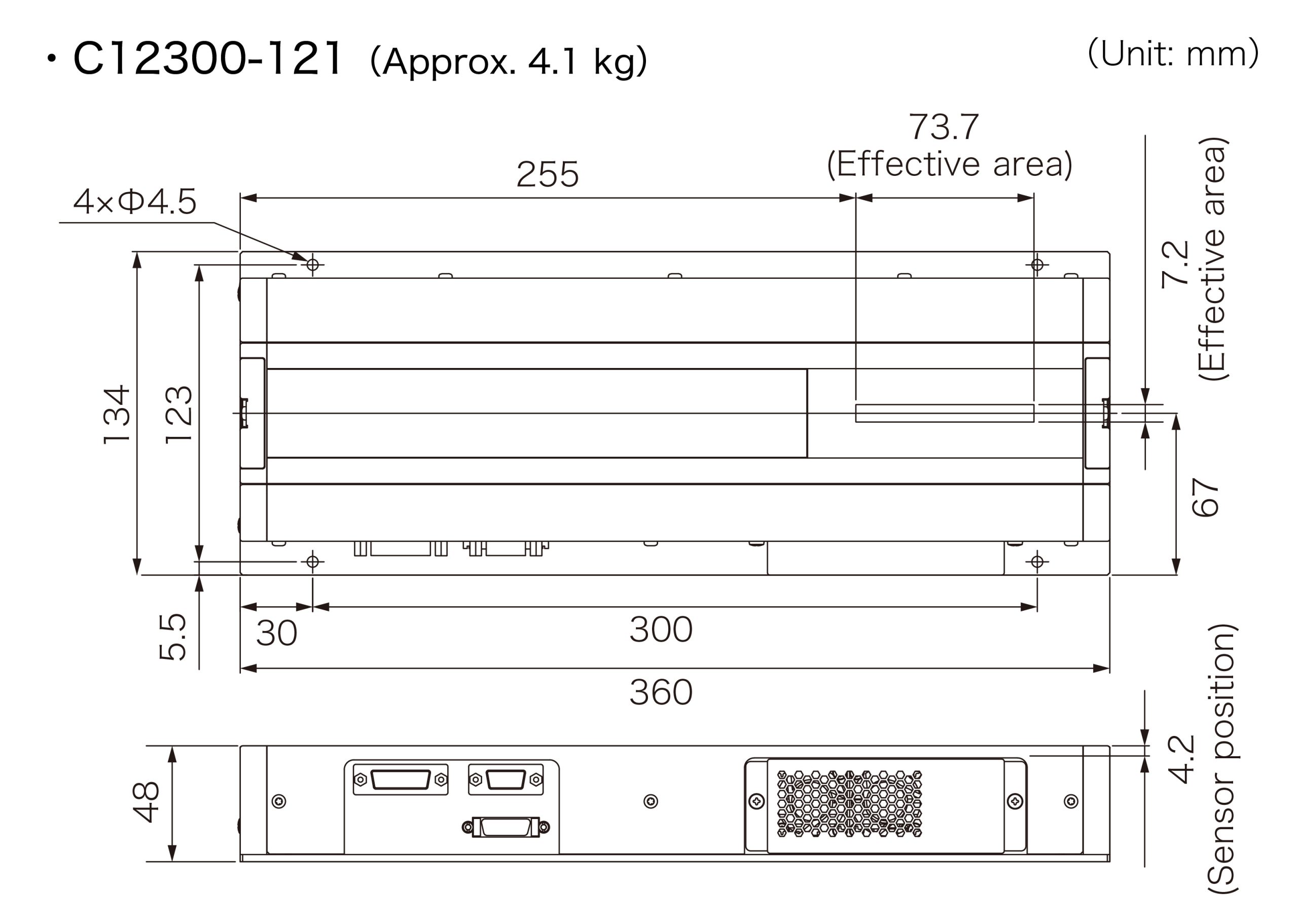

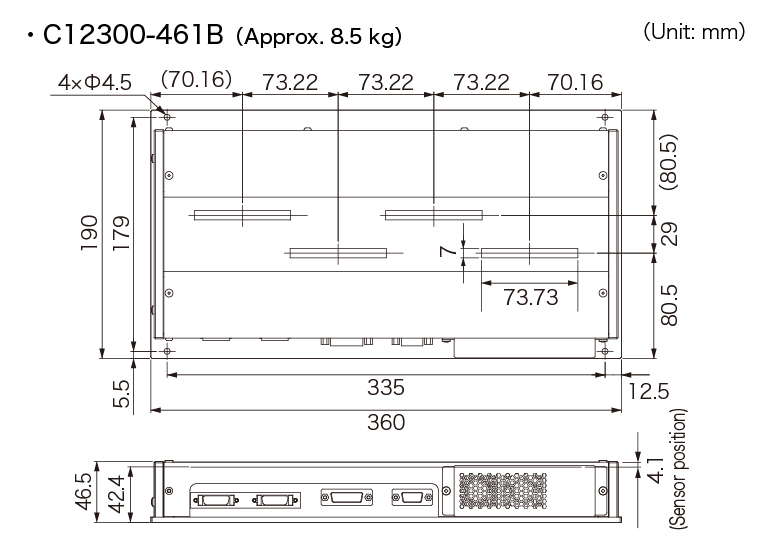

Dimensions
Related information

Features

High speed readout: 50 kHz
High sensitivity: TDI 150 step integration
Bidirectional scanning operation
High S/N ratio with 12 bit output
Camera Link interface
Single power supply (+15 V) operation
Real time dark current/shading correction function
Equipped with frame readout mode

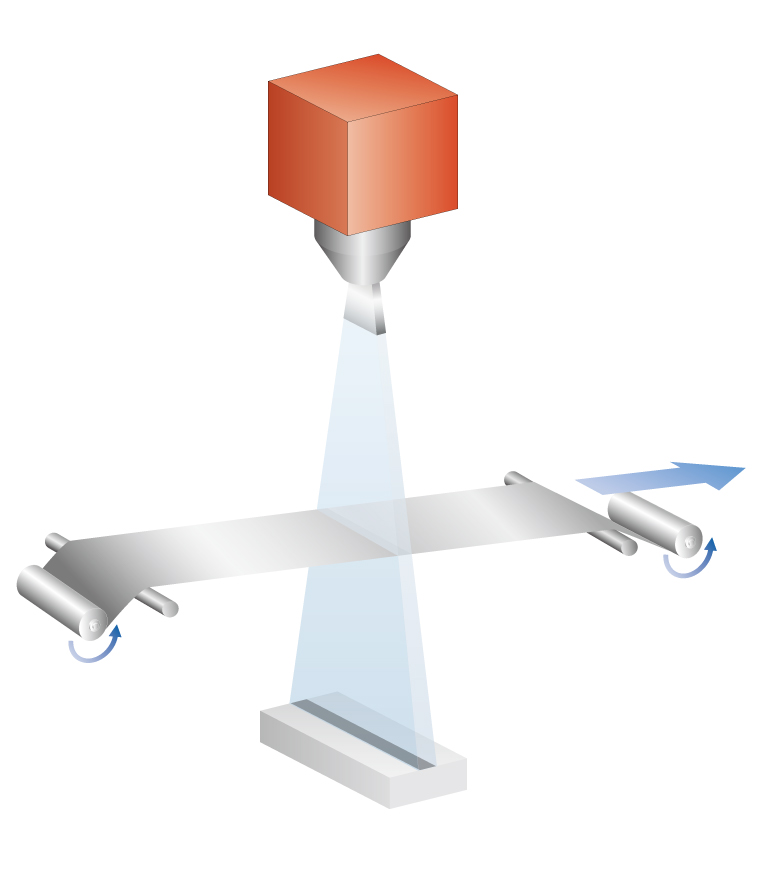

Continuous imaging of moving objects

X-ray TDI cameras can continuously inspect moving objects inline as they are brought into scanning range and without stopping objects such as metal sheets and separators that are fed in from roll to roll. Continuous inspection in this way means that these cameras can be applied in high-speed lines.

Operating principle of X-ray line scan camera

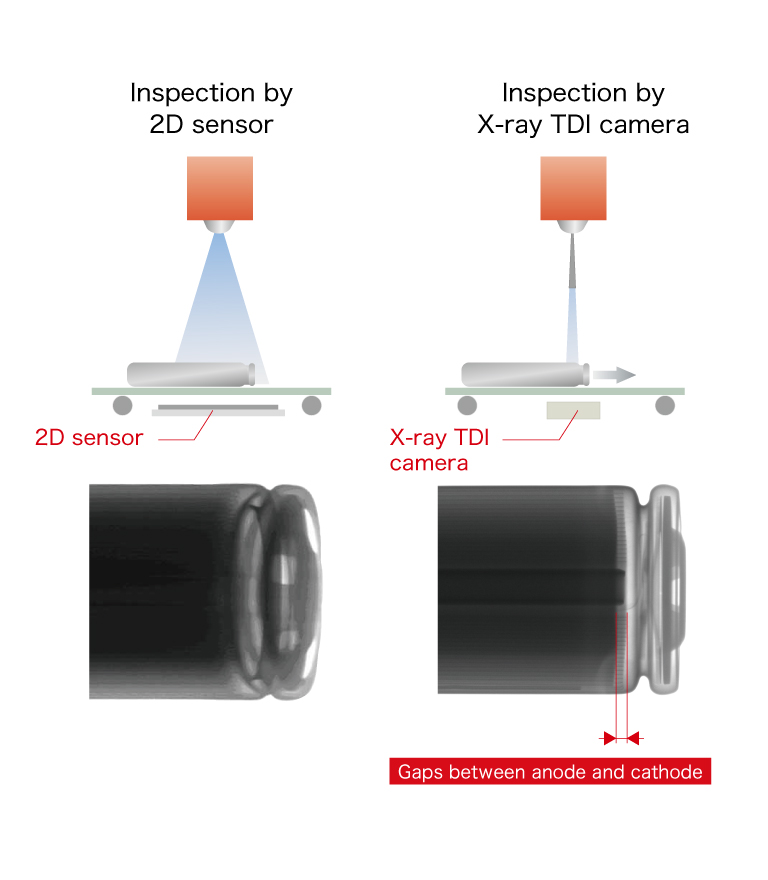

Imaging of object locations without directing X-rays at an angle

With X-ray inspection using 2D sensors, distortion sometimes occurs in images outside of the irradiation center of the X-ray source as a result of incident X-rays being directed at an angle to objects. This necessitates positional adjustment at each individual image capture point to ensure accurate inspection. Whereas, with X-ray TDI cameras, X-rays are irradiated at right angles to the carrying direction, and imaging is performed by integrating continuously captured images. As a result, distortion-free images can be acquired.

Operating principle of X-ray line scan camera

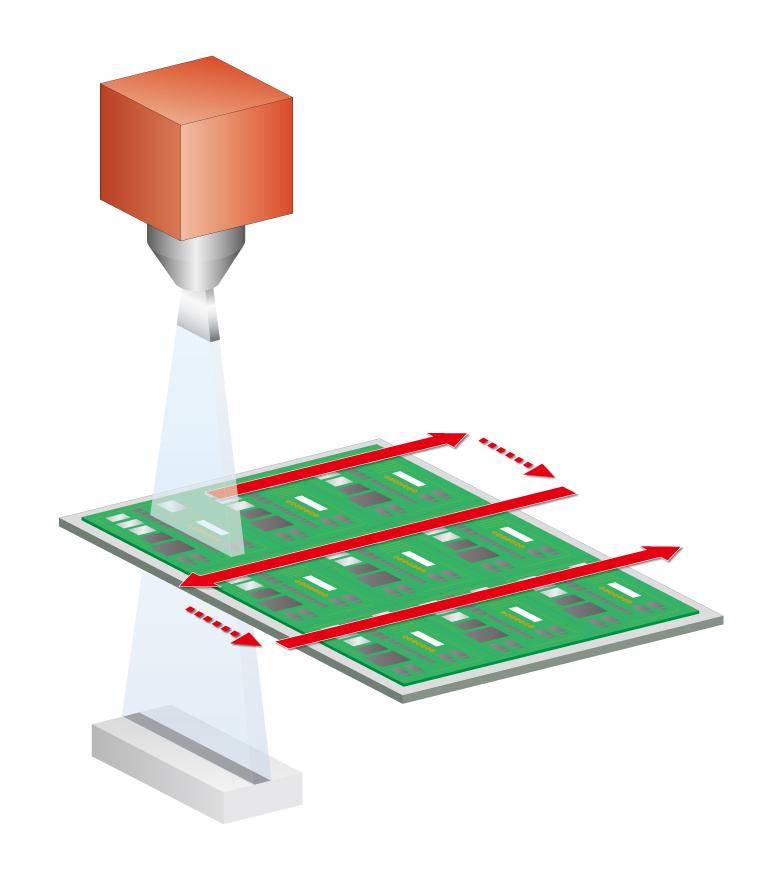

Bidirectional scanning supported

The C12300 series is capable of bidirectional scanning (switching of scan direction to match the carrying direction). As a result, this series supports connection to differently oriented lines that use the same inspection systems and systems where scanning is performed in reverse when a defect is judged. It also helps improve cycle time in the inspection of large objects such as PCBs for servers.

Operating principle of X-ray line scan camera

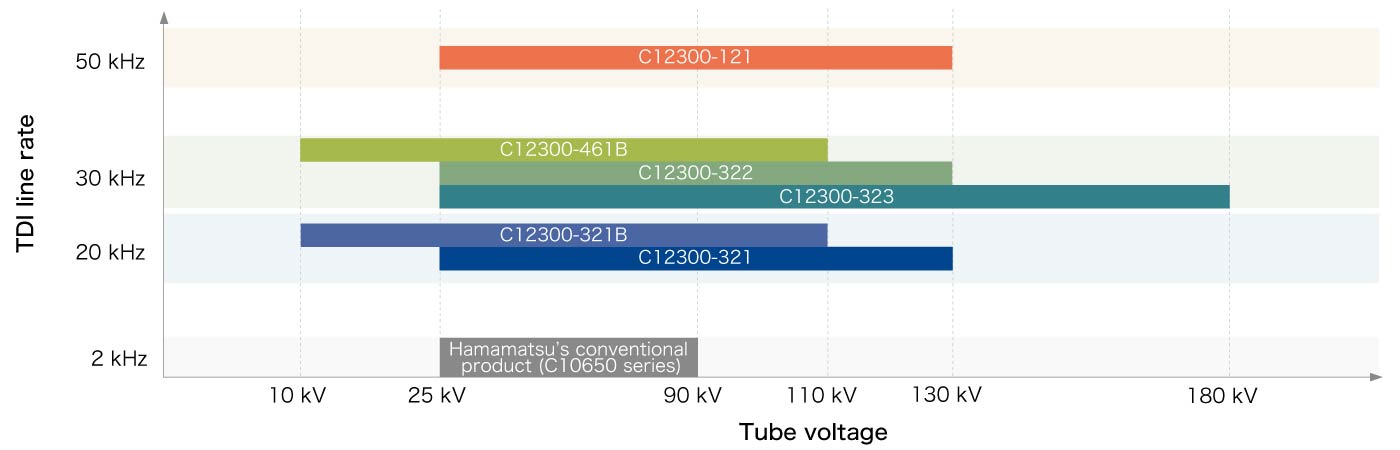

Specifications

Type number	C12300-121	C12300-321	C12300-321B	C12300-322	C12300-323	C12300-461B
Scintillator	CsI Scintillator	CsI Scintillator	CsI Scintillator	CsI Scintillator	CsI Scintillator	CsI Scintillator
Effective X-ray tube voltage range^*1	Approx. 25 kV to 130 kV	Approx. 25 kV to 130 kV	Approx. 10 kV to 110 kV	Approx. 25 kV to 130 kV	Approx. 25 kV to 180 kV	Approx. 10 kV to 110 kV
CCD pixel size	48 μm × 48 μm	48 μm × 48 μm	48 μm × 48 μm	48 μm × 48 μm	48 μm × 48 μm	48 μm × 48 μm
Number of pixels	1536（H）× 150（V）	4608（H）× 150（V）	4608（H）× 150（V）	4608（H）× 150（V）	4608（H）× 150（V）	6144（H）× 150（V）
X-ray sensitive area	73.728 mm（H）× 7.2 mm（V）	221.1 mm（H）× 7.2 mm（V）	221.1 mm（H）× 7.2 mm（V）	221.1 mm（H）× 7.2 mm（V）	221.1 mm（H）× 7.2 mm（V）	293.4 mm（H）× 7.2 mm（V）^*2
Line speed	0.864 m/min to 144.0 m/min	0.576 m/min to 57.6 m/min	0.576 m/min to 57.6 m/min	0.576 m/min to 86.4 m/min	0.576 m/min to 86.4 m/min	0.576 m/min to 86.4 m/min
TDI line rate （1×1）	Max 50.0 kHz（144.0 m/min）	Max 20.0 kHz（57.6 m/min）	Max 20.0 kHz（57.6 m/min）	Max 30.0 kHz（86.4 m/min）	Max 30.0 kHz（86.4 m/min）	Max 30.0 kHz（86.4 m/min）
TDI line rate （Binning2×2）	Max. 40.0 kHz（230.4 m/min）	Max. 15.0 kHz（86.4 m/min）	Max. 15.0 kHz（86.4 m/min）	Max. 25.0 kHz（144.0 m/min）	Max. 25.0 kHz（144.0 m/min）	Max. 25.0 kHz（144.0 m/min）
Digital interface	Camera Link	Camera Link	Camera Link	Camera Link	Camera Link	Camera Link
Interface (Camera Link)	Base Configuration	Base Configuration	Base Configuration	Base Configuration	Base Configuration	Full Configuration
Digital output	12 bit	12 bit	12 bit	12 bit	12 bit	16 bit
Power supply	DC +15 V	DC +15 V	DC +15 V	DC +15 V	DC +15 V	DC +15 V
Power consumption	Approx. 30 VA	Approx. 45 VA	Approx. 45 VA	Approx. 45 VA	Approx. 45 VA	Approx. 45 VA
Ambient operating temperature	0 ℃ to ＋40 ℃	0 ℃ to ＋40 ℃	0 ℃ to ＋40 ℃	0 ℃ to ＋40 ℃	0 ℃ to ＋40 ℃	0 ℃ to ＋40 ℃
Ambient storage temperature	－10 ℃ to ＋50 ℃	－10 ℃ to ＋50 ℃	－10 ℃ to ＋50 ℃	－10 ℃ to ＋50 ℃	－10 ℃ to ＋50 ℃	－10 ℃ to ＋50 ℃
Ambient operating/storage humidity	30 ％ to 80 ％ (With no condensation)	30 ％ to 80 ％ (With no condensation)	30 ％ to 80 ％ (With no condensation)	30 ％ to 80 ％ (With no condensation)	30 ％ to 80 ％ (With no condensation)	30 ％ to 80 ％ (With no condensation)
